HAMMOND CS-225


De CS 225 is gebaseerd op de Content D 2232

Hier eerst even de specificaties

Pedaal registers
16' Subbass
8' Octave
8' Gedeckt
4' Choral Bass
16' Fagott
8' Trombone
Great to Pedal
Swell to Pedal

Rugwerk (bovenklavier)
16' Bourdon Doux
8' Open Diapason
8' Viola di Gamba
4' Flauto Dolce
2' Super Octave
Mixture III
8' Hautbois
Tremulant

Hoofdwerk (onderklavier)
8' Montre
8' Rohr Flute
4' Prestant
2' Flautino
Mixture IV
8' Trompette
Tremulant
Swell to Great
Manual Bass

SPECIFICATIONS CS 225

Rotary Controls:
Master Volume, Transpose, Preset Bank Select, Voice Select, Pedal Volume, Chorus Select
Expression Pedals for Great and Swell
Adjustable Settings
Overall Pitch, Historical Tunings (Temperament)
Tremulant Speed & Depth for Swell & Great Manuals
16 Reverb Programs, Manual Inversion, Adjustable Wind Pressure, Adjustable Fluctuation, Adjustable Dynamic Contour

Two five octave manuals
32 note Radial Concave Pedal board
Monobass
Master, Pedal and Reverb Volume Control
Transposer switch -3/+2
Voice Control 1/2/3
Chorus Control 1-6
Two expression pedals
Presets PP-T/HR
Free Combinations 1-6
Memory Bank 1-6
Capture System 12 x 6 Generals
Set and Cancel
Reeds Off
Key Programmable functions: Reverb Time, Pitch, 6 Different Tunings, Manual Inversion,
Wind pressure, Fluctuation, Tremulant Speed and Depth, Dynamic Contour, Chiff
Demosong
Amplification 2 x 50 Watt, 4 Loudspeakers
Midi In Out Thru, 3 channel In/Out
Midi Switches On/Off Pedal, Great and Swell
Audio In/Out Stereo
Headphones
25 pin PCC Handset Connector
Roll top with lock
Pedal Illumination
Standard finish: Light or dark oak real wood veneer
Options
PCC and Sequencer drawer with:
Volume and Attack adjustable for individual stops
Chiff and Chorus adjustable for individual stops
Tuned Attack for individual Reeds adjustable
Sequencer: Tempo, Stop, Play and Record
DIMENSIONS:
Height            114 cm
Width             137 cm
Depth             57 cm  excl. pedal board
Depth             90 cm  incl. Pedal board
Weight           145 kgs incl. bench/pedal board

 ************************************************************************

 Door de louvres (sleuven) speakers boven rechts en links op het registerpaneel
verkrijgt de organist een veel fraaier stereo-beeld.

 ***************************************************************************

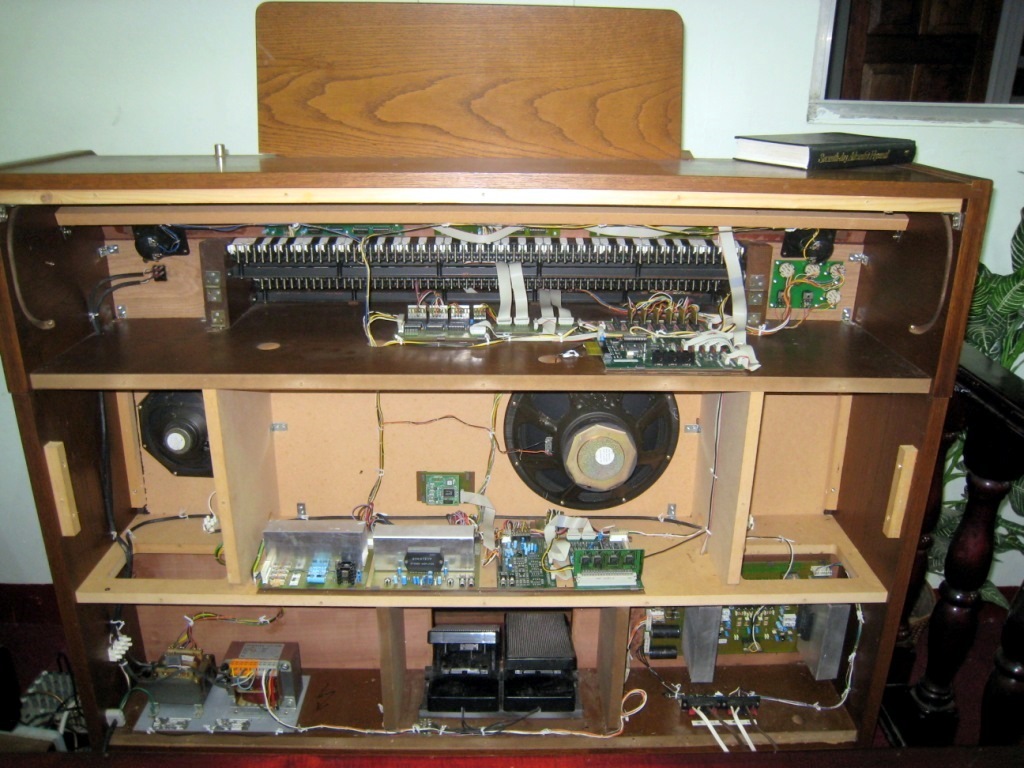

Tot slot een kijkje in de elektronica:

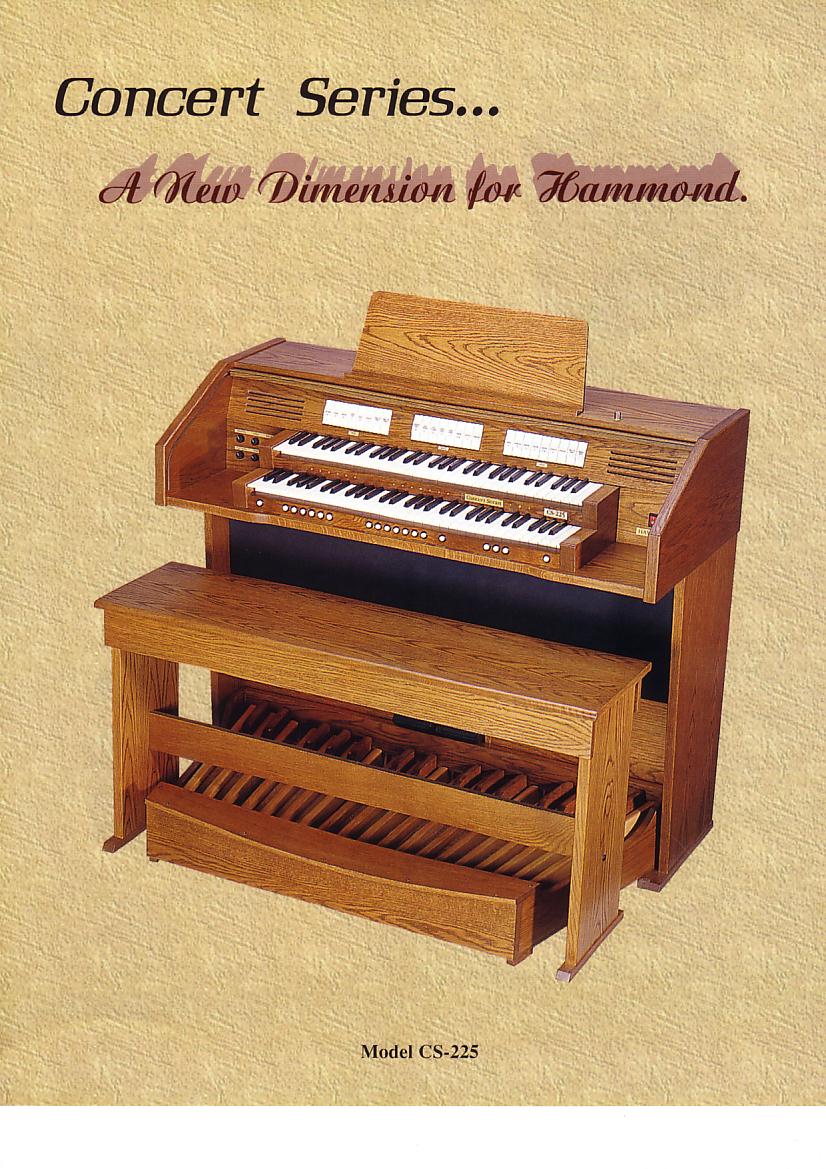

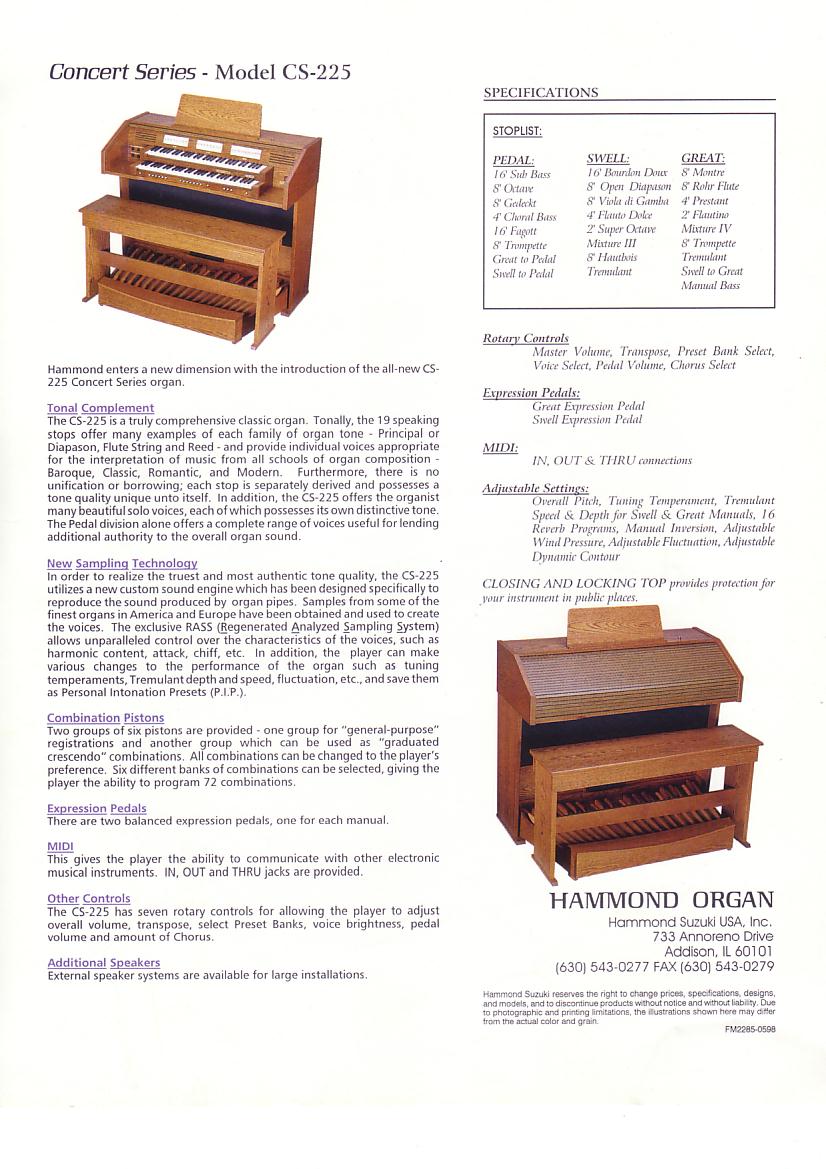

HIER DE ORIGINELE FOLDER:
