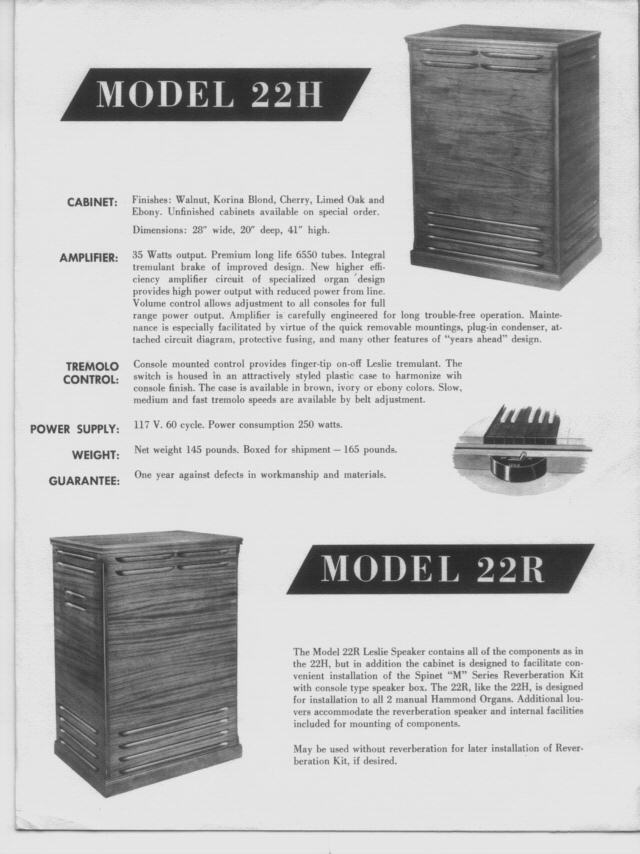

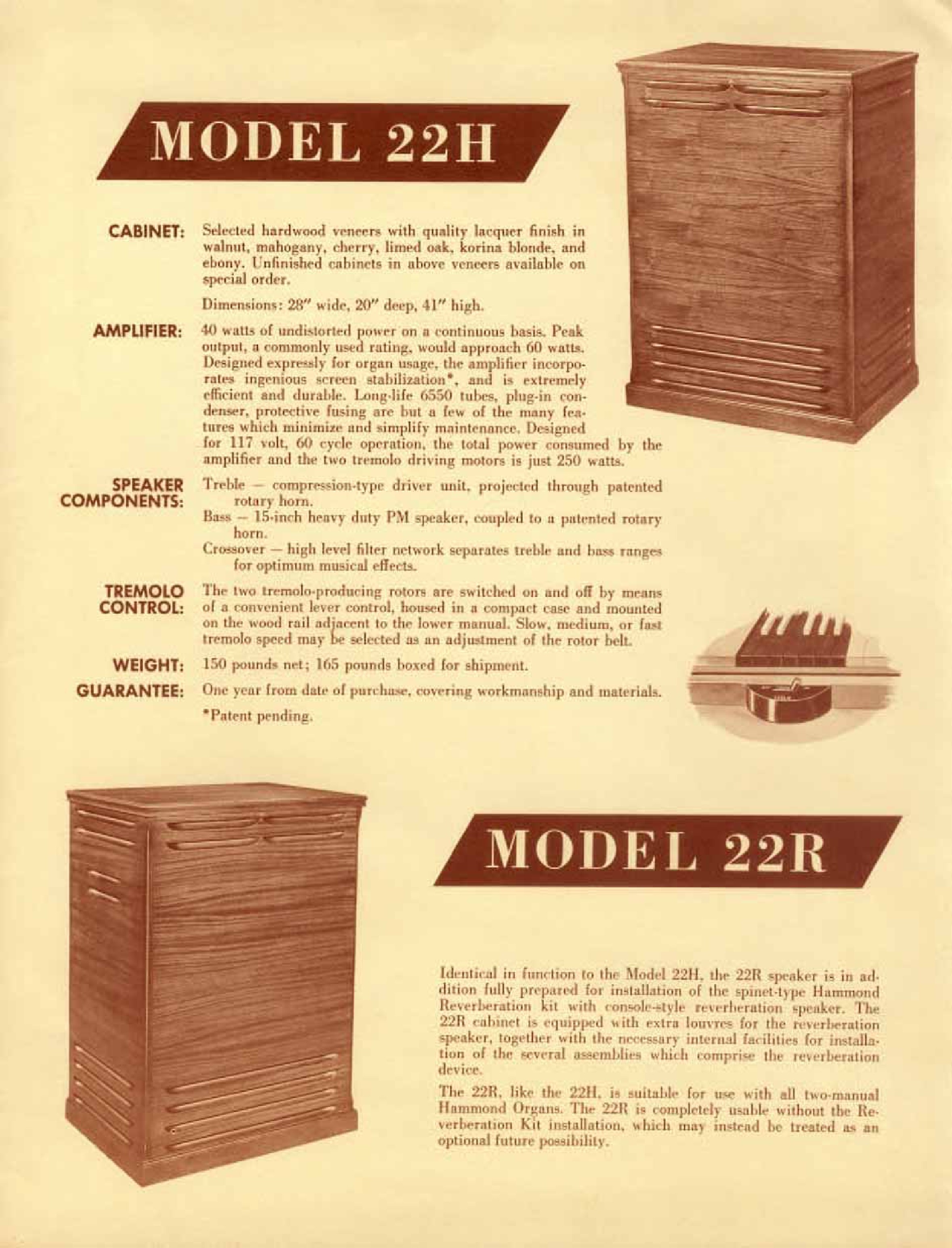

LESLIE MODEL 22- R

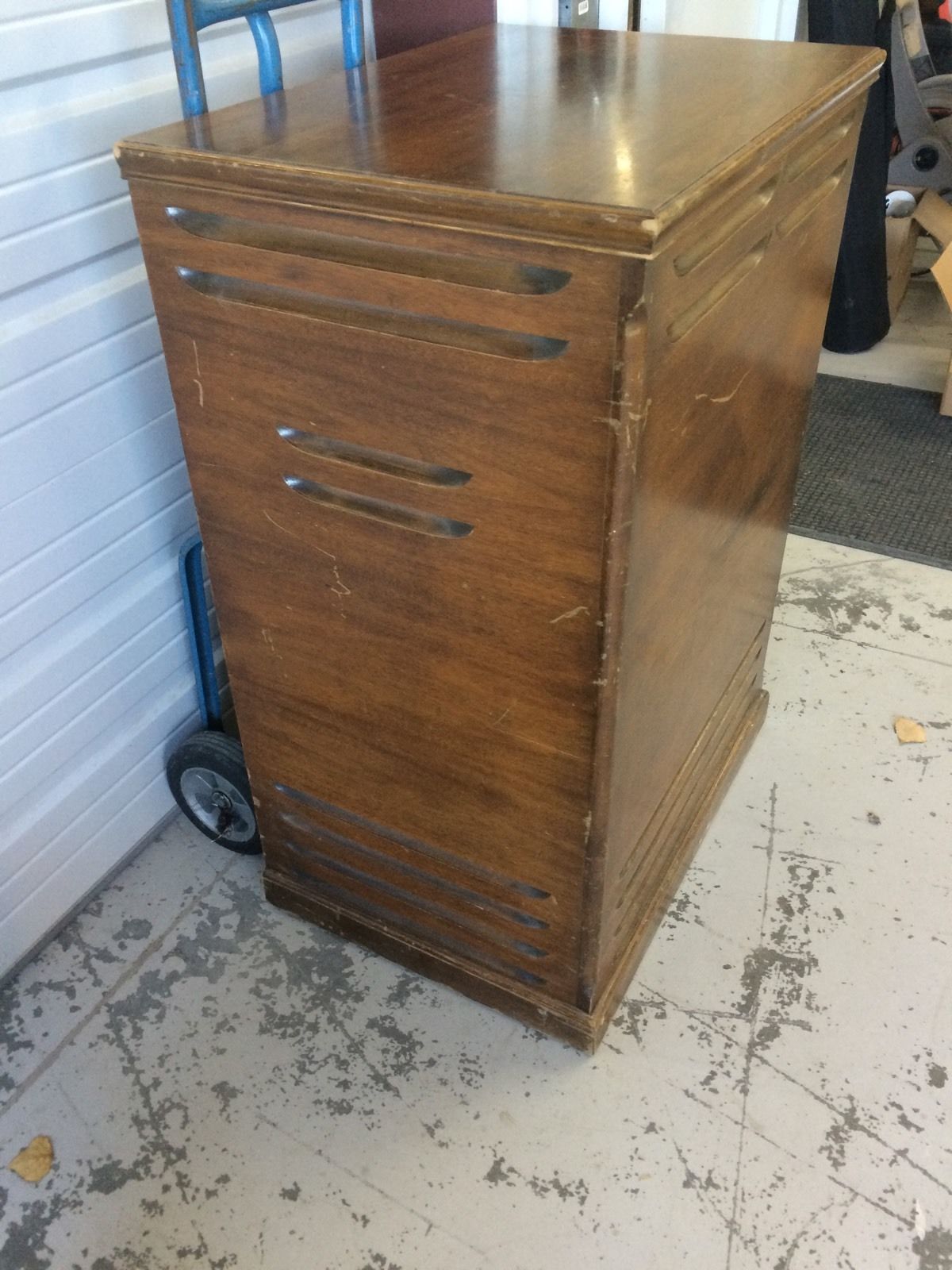

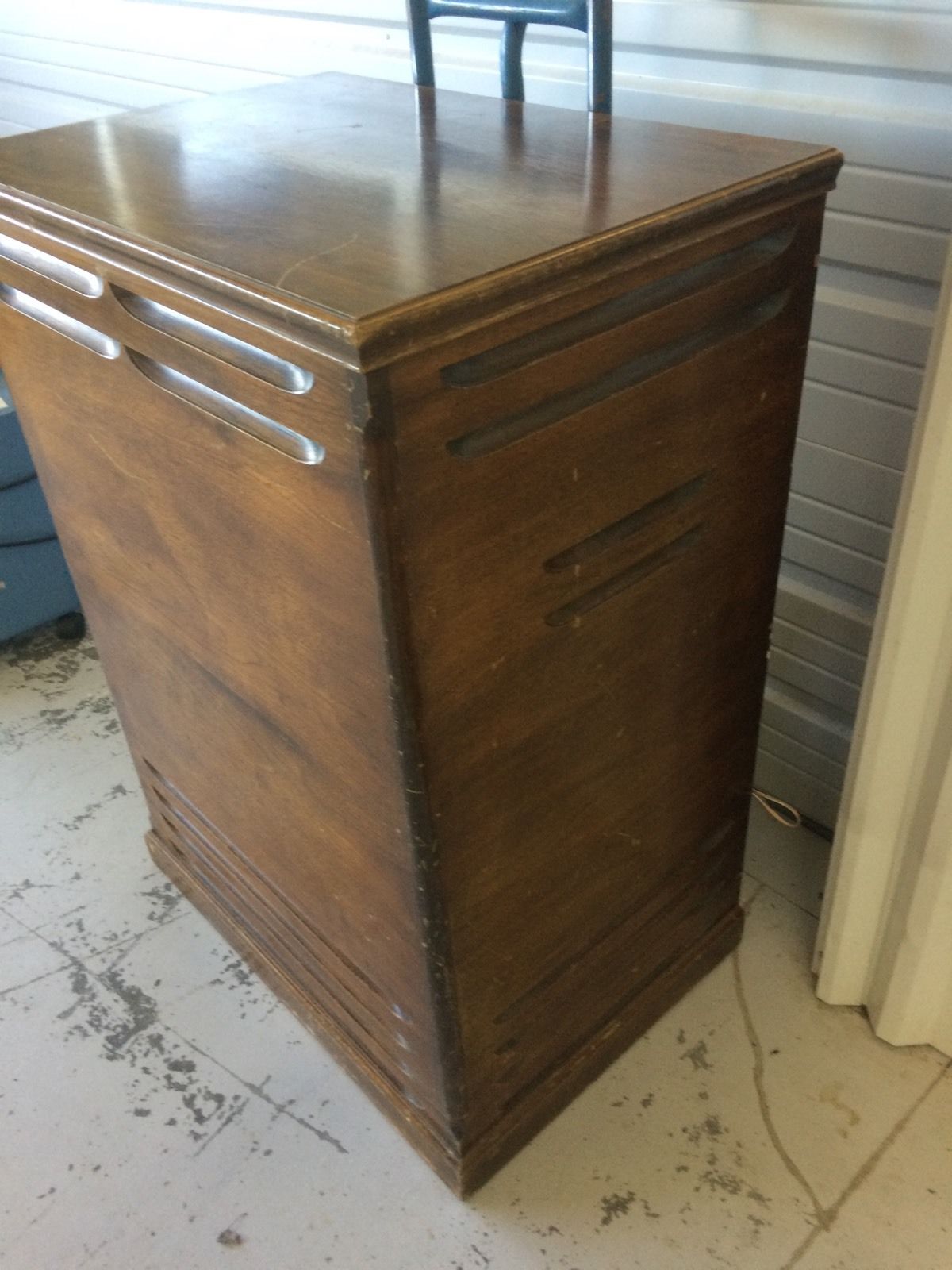

De Leslie 22 R was exact hetzelfde als model 21 H, maar kreeg als extra een Hammond ETK  Reverb-kit. In het zijpaneel van de box was dan ook een extra tweetal louvres voor de galm voorzien.

Amplifier Type 1 Channel Vacuum Tube
Output Power 35 Watts
Drum 1 - 15" Speaker
Horn 1 - Compression Driver
Speeds 1 Speed (Stop/Tremolo)
Interface 6 Pin Balanced

  • Height 41 inches.
  • Width 28 inches.
  • Depth 20 inches.
  • Has 2 rotors and 2 speakers.
  • Accepts 1 channel from the source.
  • The amp provides 35 Watts of RMS power.

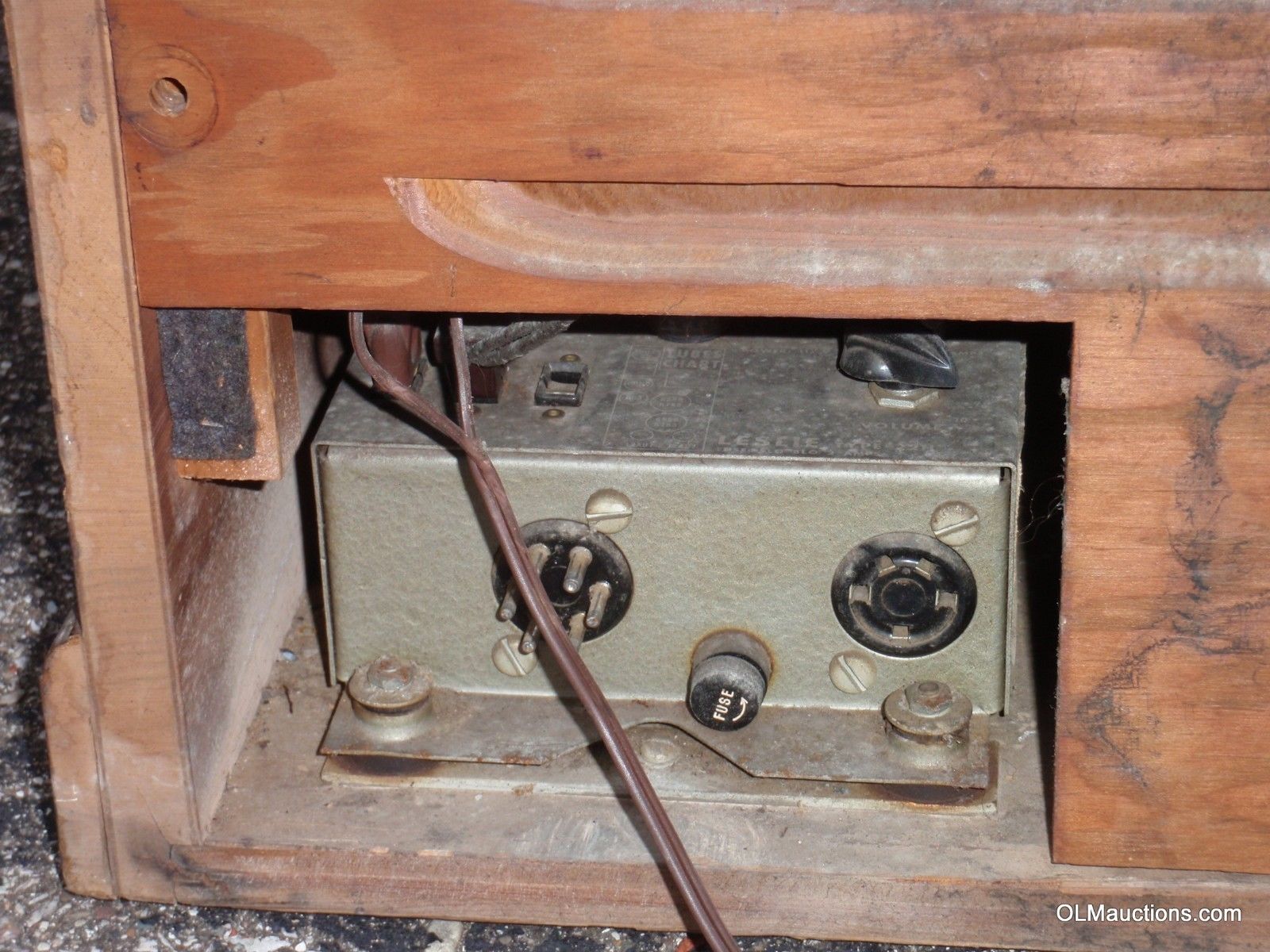

  • A 6 pin connector:
    1. G-G Signal Black
    2. Audio Ground
    3. AC Power Return
    4. AC Power Hot
    5. No Connection/Preamp B+
    6. G-G Signal Red
  • Leslie recommends it for use with Hammond only.
  • Has a warm-toned vacuum tube amp.
  • Has a reverb system inside.

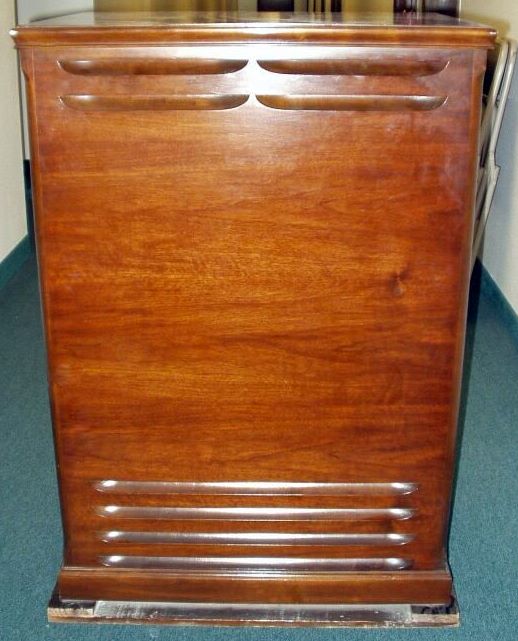

  • Has a wood cabinet.
  • Has a tremolo-brake system for quick stops.

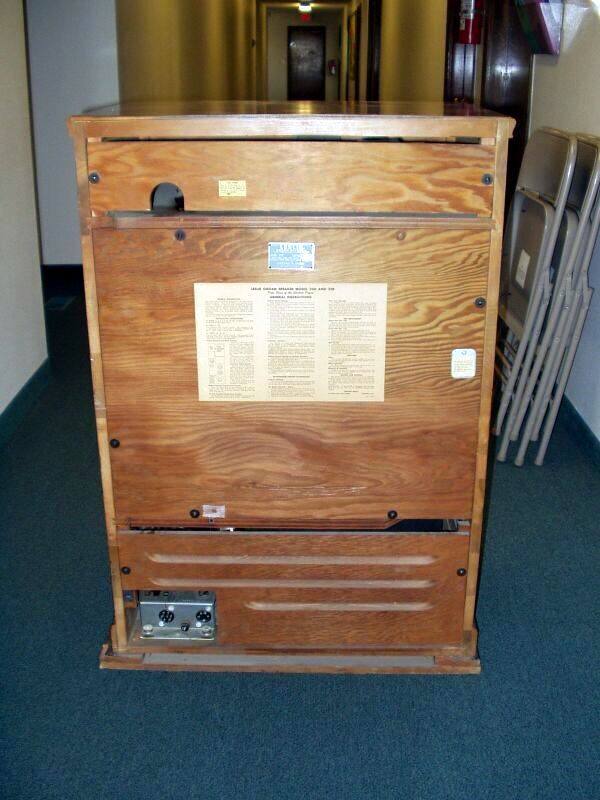

Achterinkijkje: http://www.youtube.com/watch?v=dciTkMrWSZM
