De Leslie Encyclopedie

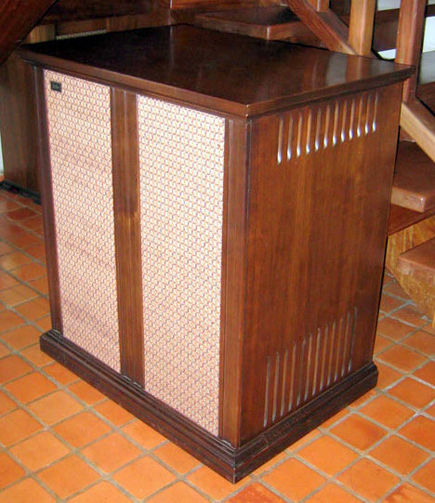

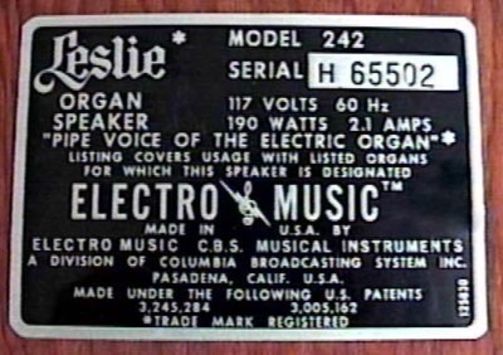

LESLIE MODEL 242





De Leslie 242 is een "Decorative" uitvoering van de 142  dus de specs zijn hetzelfde.

  • Height 34 inches.
  • Width 30 inches.
  • Depth 22 inches.

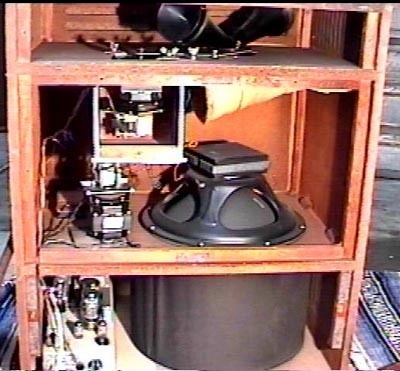

  • Has 2 rotors and 2 speakers.
  • Accepts 1 channel from the source.
  • The amp provides 40 Watts of RMS power.
  • A 6 pin connector:
    1. G/G Signal Black
    2. Audio Ground
    3. AC Power Return
    4. AC Power Hot
    5. No Connection/Preamp B+
    6. G/G Signal Red
  • Leslie recommends it for use with Hammond.

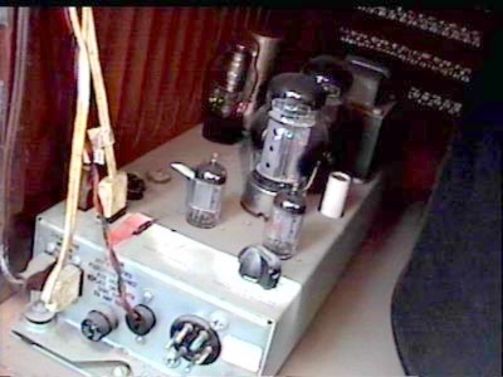

  • Has a warm-toned vacuum tube amp.
  • Has a decorator styled cabinet.



Links de 122 en rechts de 242
