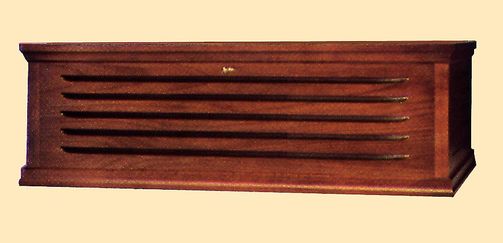

LESLIE MODEL 515



Leslie model 515 was ontworpen ter uitbreiding van de volgende modellen:
315, 415, HL-422, 715 en de HL-722.

De bedoeling van deze box was om aan de bovengenoemde modellen extra kanalen toe te voegen voor orgels, die over méér dan twee kanalen beschikten.

Amplifier Type Solid State
Output Power 35 Watts x 2
Drum None
Horn None
Speeds None
Interface 11 Pin

  • Height 10 inches.
  • Width 28 inches.
  • Depth 21 inches.
  • Has no rotors and 2 speakers.
  • Accepts 2 channels from the source.
  • The amp provides 70 Watts of RMS power.
  • An 11 pin connector:
    1. Flute/Tibia audio
    2. Main/Stationary audio
    3. No Connection
    4. Audio Ground
    5. Control Supply Common
    6. Control Circuit Common
    7. Fast Motor Control
    8. Slow Motor Control
    9. No Connection
    10. Aux #1
    11. 29 VDC for control head
  • Leslie recommends it for use with Leslie 315, 415, HL422, 715, HL722.
  • Has treble response controls.
  • Has a wood cabinet.

Voor een onverwachte combinatie klik op de link:
https://www.youtube.com/watch?v=FFxxTgCfA3c
