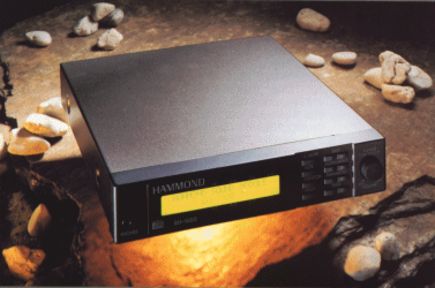

Hammond GM 1000 Midi-Module




De GM 1000 was een poging van Hammond om in de MIDI markt mee te spelen.
Ongetwijfeld was deze module niet van eigen makelij, wat natuurlijk geen schande is.


Twee opmerkelijke zaken vielen op:
1) flexibiliteit: er zaten naast een flink aantal GM geluiden ook een flink aantal Drawbar sounds in en de Leslie was schakelbaar  tussen slow en fast.
2) totále onbedienbaarheid: ofschoon de module best veel edit mogelijkheden had was de bedieningsstruktuur ongetwijfeld ontworpen door een nederlands politicus.

Hier de specs:
Sound Engine
VASE technology
Maximum Polyphony 32 notes
Maximum 16 parts multi-timbral
Wave Memory: PCM 64 Mbit
Voices:
Total 368 Voices. General Midi 128. Variation 138 (incl. many Hammond Organ Settings)
Drum 102 (9 drum sets)
Effects:
Digital Reverb 8 types (Room 1, 2, 3, Hall 1, 2, Plate, Delay, Church)
Digital Chorus 8 types (Chorus 1,2, Leslie slow, fast, echo, flanger, delay 1,2)
Part Edit:
Volume, reverb, chorus, panpot, keyshift, bend range, modulation, expression, fine tune etc.
Sound Edit:
Vibrato rate, vibrato depth, vibrato delay, cutoff freq, resonance, attack time, decay time, release time.
Drum Edit:
9 drumsets. All instruments editable: volume, pitch, panpot, reverb level, chorus level
Global Edit:
Master tune, master volume, master key shift, master panpot, reverb level, chorus level, reverb type (room, hall, etc.)
Chorus type
(LESLIE slow & fast, delay etc.) reverb character, reverb pre-lpf, reverb time, chorus rate.
Midi: Midi in 1, Midi in 2, Midi out, Midi thru
Audio: Audio out right & left.
Headphone 8-150 Ohm
Interface: RS232C (Cable RSC-1 optional)
Adapter:  DC 10 Volt
Amp power (use max 700mA)
Dimensions: 218 x 251 x 44 mm (half 19 Inch)
Weight: 1,5 kg
Accessories: Includes Adapter, midi cable, audio cable

Hier de voice list: zowel GM als de Variations:

001 Gr piano, Dark PF
002 Br piano
003 El grand
004 Hnky tonk
005 El piano, Trem E.Pf, Det E Pf 1, Epiano 1v, 60's E. Pf
006 El piano 2, Det E Pf 2, E Piano 2v
007 Hrpschrd, Cople Hps
008 Clavi
009 Celesta
010 Glocken
011 Musicbox
012 Vibes
013 Marimba
014 Xylophon
015 Tub bells, Church bells, Carillon
016 Dulcimer
017 DRAWBAR ORGAN,
settings: 888000000, 888000006, 888800000, 846310000, 880080000, 808800000, DetEorgan, 805300000, 808000000, 805000000, 800800000, 800080000, 800008000, 800000008, 800000888, 808000888, 806804003, 808080806, 323473244, 324836056, 888000444, 888884444, 864212356, 867856566, 088060000, 088800000, 028000060,
018 Percussive Organ, Organ 1p 888000006, Organ 2p 888800, Det E organ 2
019 Rockorgan
020 Church Organ 1, Positive Organ 1, Positive Organ 2, Church Organ 2, Church Organ 3
021 Reed Organ
022 Accordion French, Accordion Italian
023 Harmonica, Melodion
024 Tango Accordion
025 Nylon Gtr, Ukelele, Nylon Gtr2
026 Steel Gtr, 12 String Gtr, Mandolin
027 Jazz Gtr, Hawai Gtr
028 Clean Gtr, Chorus Gtr
029 Muted Gtr, Funk Gtr
030 Overdrive Gtr
031 Distortion Gtr, Feedback Gtr
032 Guitar Harmonics, Guitar Feedback
033 Woodbass
034 Fingerbass
035 Pickbass
036 Fretlessbass
037 Slapbass 1
038 Slapbass 2
039 Synth bass 1, Synth bass,  Synth bass 3
040 Synth bass 2, Synth bass 4, Rubber bass
041 Violin, Colnet violin, Slow violin
042 Viola
043 Cello
044 Contrabass
045 Tremolo Strings
046 Pizzicato Strings
047 Orch Harp
048 Timpani
049 Strings Ens 1, Strings Ens 3, Strings Ens 4, Orchestra
050 Strings Ens 2
051 Synth Strings 1, Svnth Strings 3
052 Synth Strings 2
053 Aah Choir, Doremi C, C#, D, D#, E, F, F#, G, G#, A, A#, B, Choir 2
054 Ooh Choir
055 Synth Choir
056 Orchestra Hit
057 Trumpet
058 Trombone, Trombone 2
059 Tuba
060 Mute Trumpet
061 French Horn, Flugel Horn
062 Brass, Brass Falldown, Brass 2
063 Synth Brass 1, Synth Brass 3, Analog Brass 1
064 Synth Brass 2, Synth Brass 4, Analog Brass 2
065 Soprano Sax
066 Alto Sax
067 Tenor Sax, Overblown Sax, Tenor Sax velocity
068 Baritone Sax
069 Oboe
070 English Horn
071 Bassoon
072 Clarinet
073 Piccolo
074 Flute, Flute 2
075 Recorder, Recorder 2
076 Pan Flute
077 Bottle Blow
078 Shakuhachi
079 Whistle
080 Ocarina
081 Square Lead, Square, Claviolin, Sinewave
082 Saw Lead, Saw, Dr. Solo
083 Calliope Lead
084 Chitfer Lead
085 Charang Lead
086 Voice Lead
087 Fifth Lead
088 Bass & Lead
089 New Age Pad
090 Warm Pad
091 Poly synth Pad
092 Choir pad
093 Bowed Pad
094 Metal Pad
095 Halo Pad
096 Sweep pad
097 Ice Rain
098 Sound Track
099 Crystal, Synth Mallet
100 Atmosphere
101 Brightness
102 Goblin
103 Echo Drops, Echo Pan
104 Sci-fi
105 Sitar, Sitar 2
106 Banjo
107 Shamisen
108 Koto, Taisho Koto
109 Kalimba
110 Bag Pipe
111 Fiddle
112 Shanai
113 Tinkle Bell
114 Agogo
115 Steel Drum
116 Wood Block, Castanet
117 Taiko Drum, Shime Daiko, Tsuzumi, Concert Bass Drum
118 Melodic Tom, Melodic Tom 2
119 Synth Tom, Analog Tom
120 Rev Cymbal, Rev Cymbal 2
121 Guitar Fret Noise, Guitar Cutting Noise, String Slap
122 Breath Noise, Flute Key Click
123 Sea, Rain, Thunder, Wind, Stream, Bubble
124 Bird, Dog, Horse, Bird 2
125 Telephone 1, Telephone 2, Door, Door 2, Stop, Wind Chime
126 Helicopter, Car Engine, Car Stop, Car pass, Crash, Siren, Train, Jet, Starship, Burst Noise
127 Applause, Laugh, Scream, Punch, Heart Beat, Foot Step
128 Gun Shot, Machine Gun, Laser Gun, Explosion

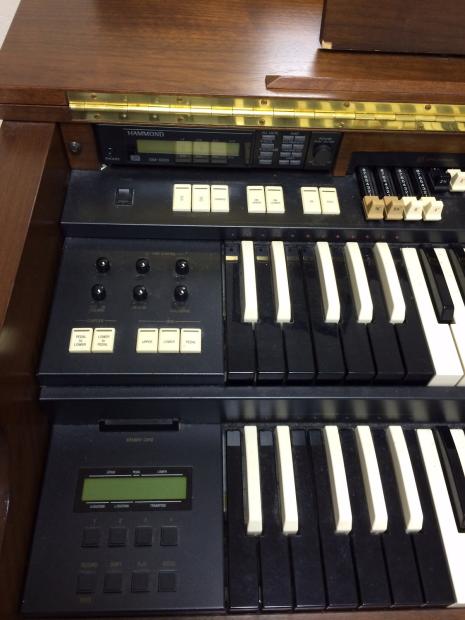

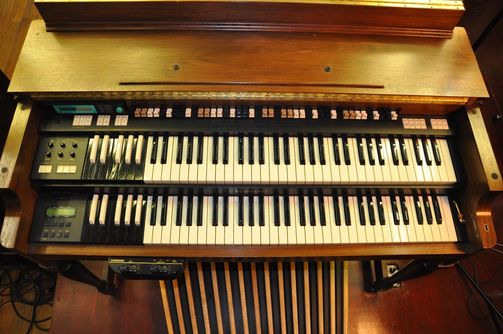

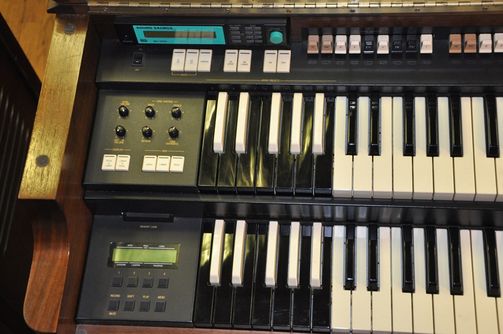

Hammond bracht in het orgel-model XB-3 een"luikje"aan, waarin de GM-1000 geschoven kon worden,en daarvoor fraai in het orgel "integreerde":

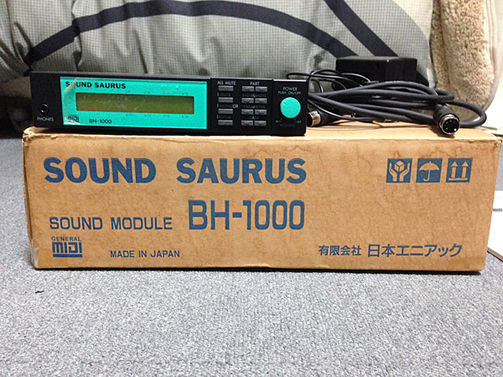

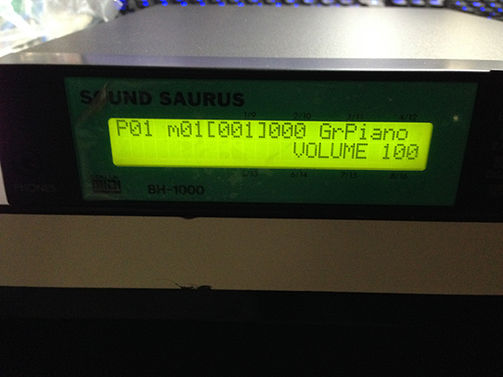

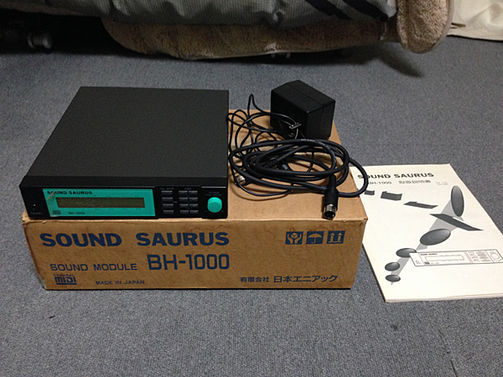

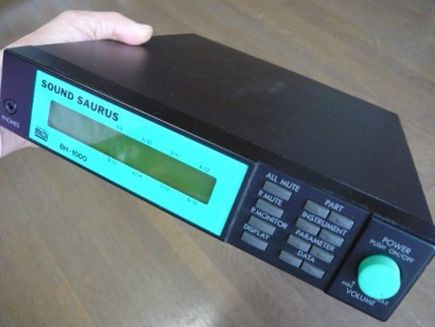

De Gm-1000 is ook opp de markt geweest als Sound Saurus BH-1000.
Gezien het aanbod van de laatste jaren,is hij zeer weinig verkocht,en daardoor best uniek te noemen:





Hier is de Fabrieks-demo te horen:
https://www.youtube.com/watch?v=dIDhp43K1Xs
