De Hammond SK-2
"Een voetpedaal eronder en je hebt een compleet orgel !"

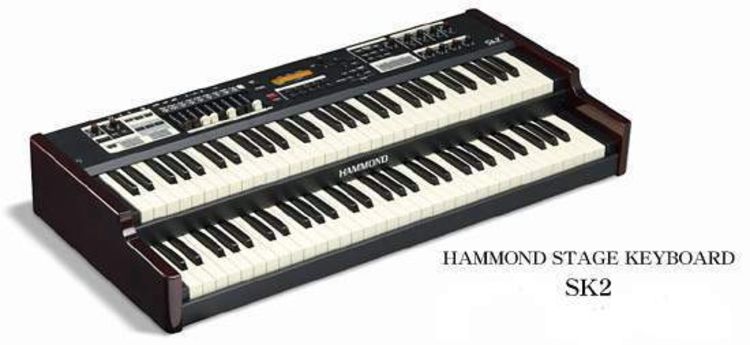

HAMMOND SK-2
De Frankfurter Musikmesse april 2011: de Introductie van het allernieuwste HAMMOND stage-keyboard.
Met veel elan en na veel onderzoek vertrouwde Hammond de muziekwereld een nieuw model toe, de Hammond SK. En wie kon Hammond voor deze introductie méér stampij op de beurs bezorgen, dan ons aller Jon Lord, (ons, helaas, ontvallen in 2012) die met het beroemde "Child in Time" met zijn groep "Deep Purple" het Hammondorgel in de héle popwereld op de kaart zette.
Luister naar Jon Lord over de SK-2.
vlnr Joe Berger, Jon Lord en Michael Falkenstein bij de introductie van de
Hammond SK-1 and SK-2 Stage Keyboards op de Musikmesse 2011
*********************************************************************

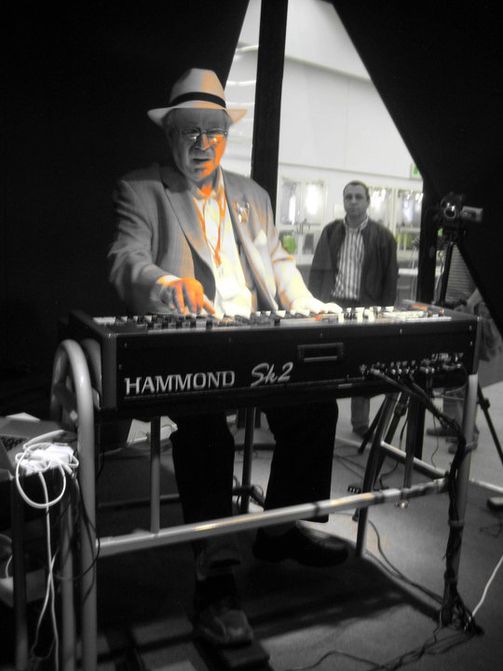

Ook Mr. John Hammond ging even heerlijk uit zijn dak...
John is een Amerikaans staatsburger die zijn oorspronkelijk naam voor veel geld heeft doen omzetten in "Hammond". Soms gaat liefde voor een product wel heel ver....
************************************************************************
Niet dat "de" sound ooit is weggeweest, maar als nooit tevoren heeft een hele nieuwe generatie muzikanten in de popwereld de Hammond Sound wederom herontdekt, herkend en erkend als een onmisbaar element voor een goed stuk muziek.
Veel andere fabrikanten zagen hun kans schoon om een stoet aan Hammond-klonen op de markt te brengen, zowel hardware- als software-matig.
Ik denk dan aan Clavia (Nord Electro), Emu B-3, Korg CX-3, Oberheim OB-5, Roland VK-7, Voce key-5, Diversi DV-duo, Key-B, Creamware B4000, Native instruments B-4, Linn Organ 3 plug in, ORGANized VST plug in, GSI VB-3, Pocket Organ C3B3 etc etc.
Het is dan ook logisch te veronderstellen, dat Hammond hier een bepaald marktaandeel heeft laten liggen, hetgeen waarschijnlijk de reden geweest voor het SK project.
Meer dan ooit werd naar de concurrentie gekeken en naar nieuwe ontwikkelingen op muziek, bediening, toepassing en media gebied. Als je goed kijkt en luistert, merk je dat vooral goed gekeken is naar Roland en Nord Electro: veel splits, veel extra sounds, veel midi, polyphony, master functies, meerdere types orgels (B-3, Klassiek, Farfisa, Vox, Mellow) etc.
Ook hebben de SK's de mogelijkheid om van de Hammond site gedownloade samples
(nieuwe geluiden) in te laden. Echter en het aantal en de bruikbaarheid zijn (nog) niet allemaal om naar huis te schrijven, of je moet zitten te springen om een blokfluit en een carillon. Maar goed, het begin was er en leek veelbelovend.
Techniek
Het gaat in de SK serie over 2 modellen:
de SK-1, een éénklavier met 61 toetsen, prijsindicatie: $ 1.990,-
de SK-2, twee klavieren met 61 toetsen, prijsindicatie: $ 2.890,-
Sound Generator:
Organ Section: 2 - VASE III as Digital Tonewheels
Transistor Organ and Pipe Organ
61 polyphony (for Manual, except Pipe Organ)
8 polyphony (for Pedal, except Pipe Organ)
63 polyphony (Maximum on Pipe Organ)
Keyboards
C1 to C6 61-key (SK1)
Extra Voice Section
VASE III, 63 polyphony maximum
Drawbars
9 Pitches,(voetmaten) assignable for Upper, Pedal and Lower.
Voicing
Manuals: 6 choices (B-Type 1, B-Type 2, Mellow, Vox, Farfisa, Pipe), variable key-click
Pedal: 4 choices (Normal, Muted, Synth 1, Synth 2) 5 choices key-click
Buttons
Second Harmonic, Third Harmonic, Fast Decay, Volume Soft
Adjustable
Touch, Velocity, Decay (Fast, Slow), Level (Normal, Soft)
Extra Voice
6 Groups (A. Piano, E. Piano, Keyboard, Wind, Other, Library)
Upgradable via Library
Allocate Upper/Lower, Solo, Group
Vibrato and Chorus
Digital Scanner
Buttons: 1, 2, Chorus, Upper On, Lower On
Overdrive
Digital 4 programs
Control: On, Amount
Multi Effects
8 programs for Organ/Extra Voice individually
Control: On, Amount
Equalizer
For Organ: Bass, Mid (sweep), Treble, Tone
For Extra Voice: Bass, Mid (sweep), Treble
Internal Leslie
Advanced Digital, Leslie 2 Rotors
Buttons: Bypass, Stop, Fast
Reverb
Digital 11 programs
Control: On, Depth
Master Equalizer
Control: Bass, Mid Gain, Mid Frequency, Treble
Keymap
Buttons
Manual Bass, Split (SK1 only), Lower to Pedal (SK2 only) Octave Up, Octave Down, Lower, Transpose
Adjustable
Coupler Highest note, Split Point
Patches
Capacity
100 User Patches, 100 Preset Patches, Manual
Favorites
10 buttons
Patch Load Options
Drawbar Registration, Drawbar Parameters, Extra Voice, Internal Zone, External Zone,
Organ Effects, Exv Effects, Reverb
Volumes
Master Volume, Music Volume, Extra Voice Volume
Switch
Power On/Off
File Format
WAV (44.1kHz, 16bit, Stereo), MP3 (44.1kHz, 128kbps, Stereo)
Control
Song, Play/Pause
Storage
USB Flash Drive
Display
20 - Characters, 2 - Lines
8 Control Buttons and Value knob
Templates
9 Templates(SK1), 5 Templates(SK2)
External Zones
3 Zones, assignable any keyboards

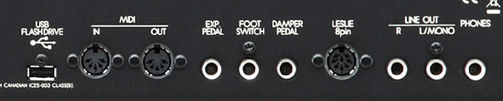

MIDI
In, Out
Audio
Line Out L/R, Headphones
Hammond adviseerd de nieuwe SPA 150 SK versterker
Leslie
8 pin, 1 and 3 channels available
Other
Foot Switch, Damper Pedal, Exp. Pedal, DC IN (12V)
Accessory
AC Adaptor AD3-1250
Dimensions
SK1: 35 1/4"(W) x 12"(D) x 3 7/8"(H)
Weight
SK1: 15 1/2 lb

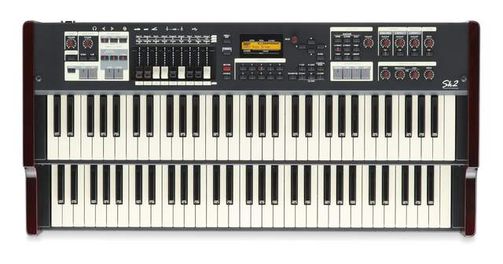

SK-2 Bovenaanzicht

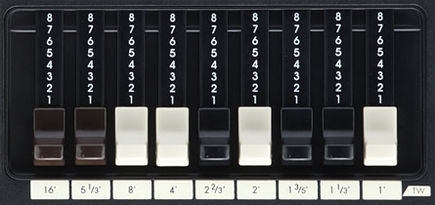

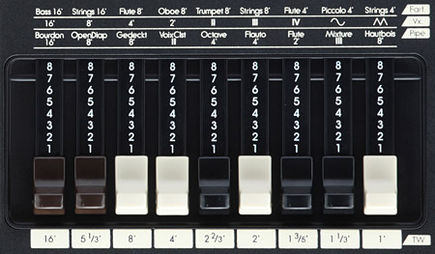

Drawbars, met multi-functie instelbaar per orgel
Het speciaal voor SK-serie, ontworpen logo

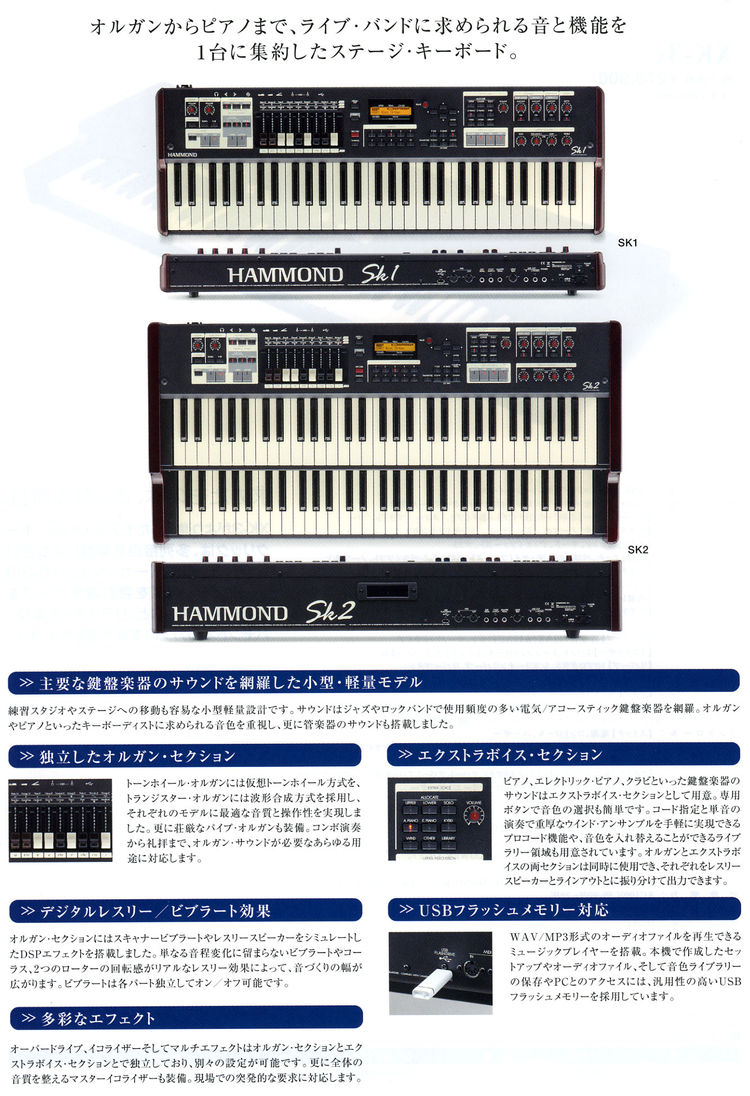

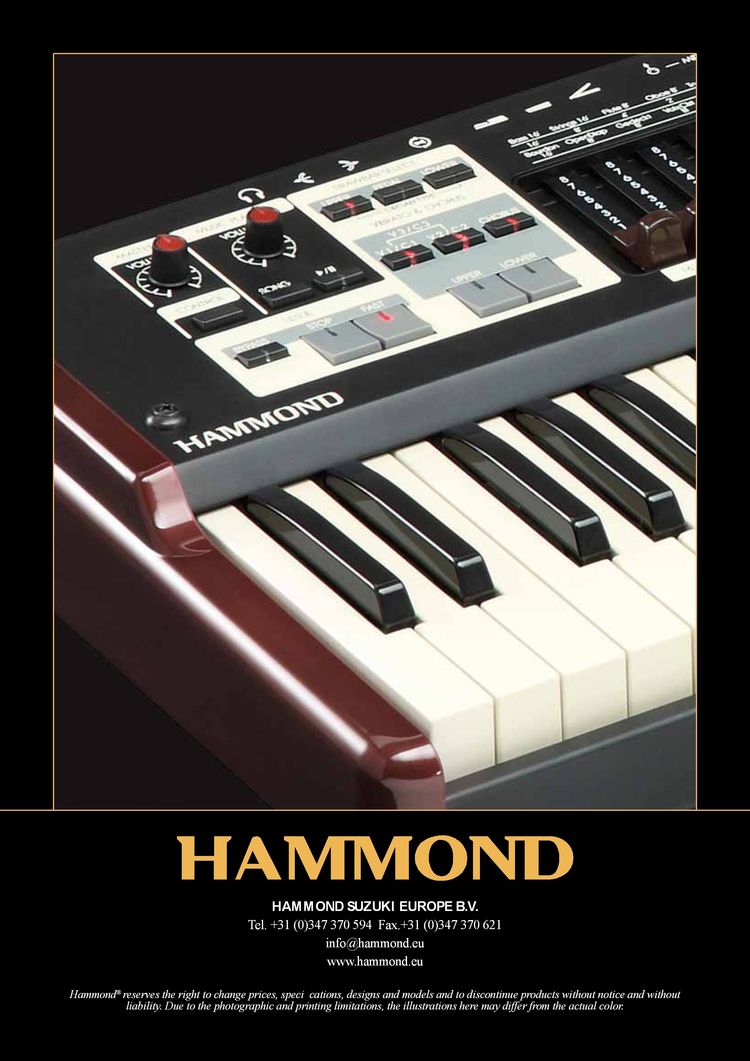

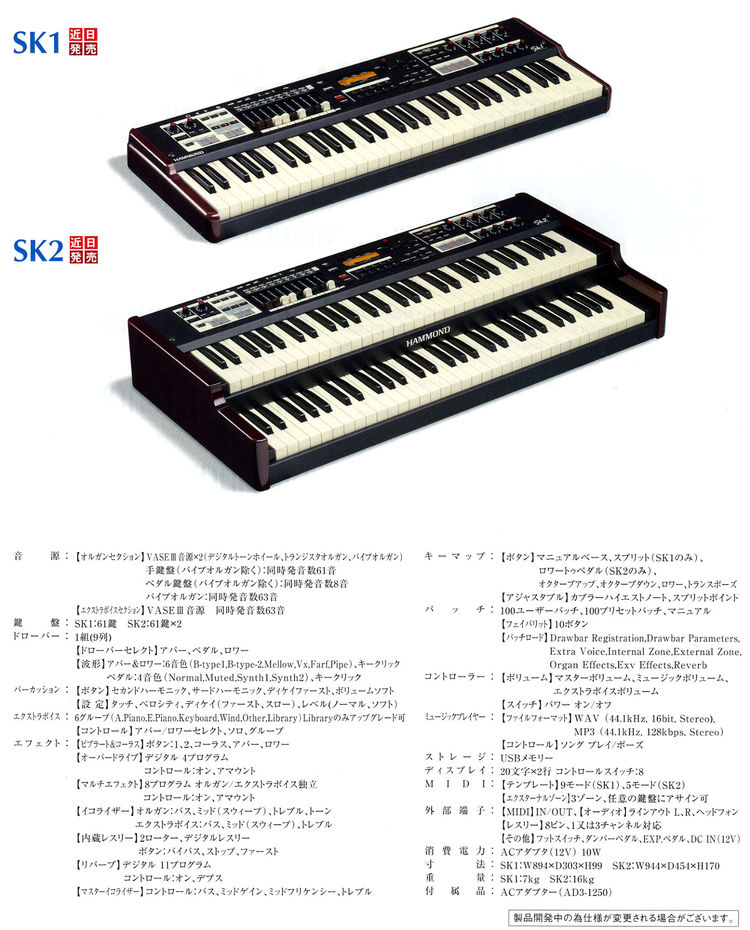

Eerst de Japanse folder: u ziet dat wij in onze zorg voor de leden en liefhebbers zeer ver gaan, en zelfs voor een cursus Japans kunnen zorgen....

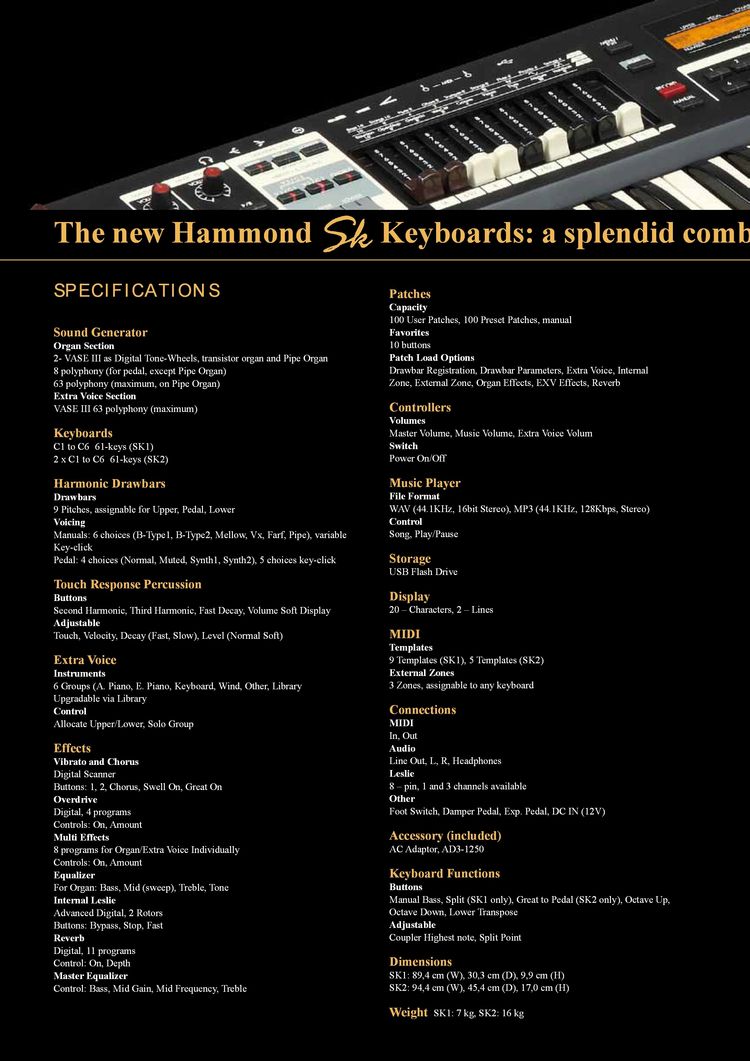

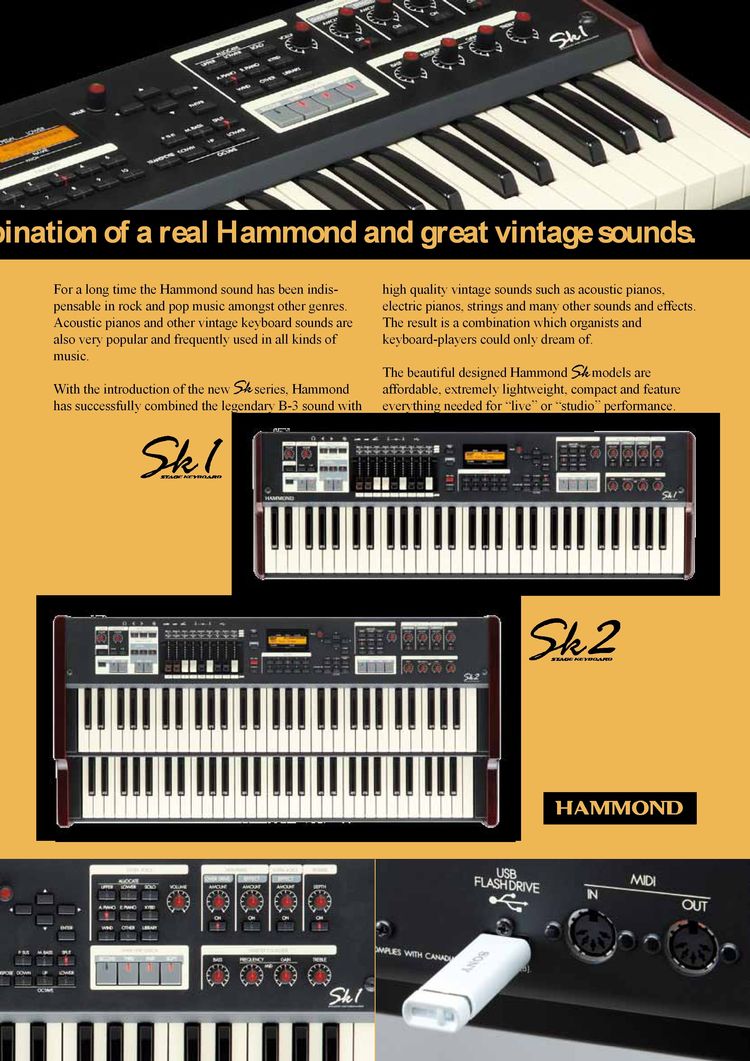

En dan natuurlijk de Engelse versie:

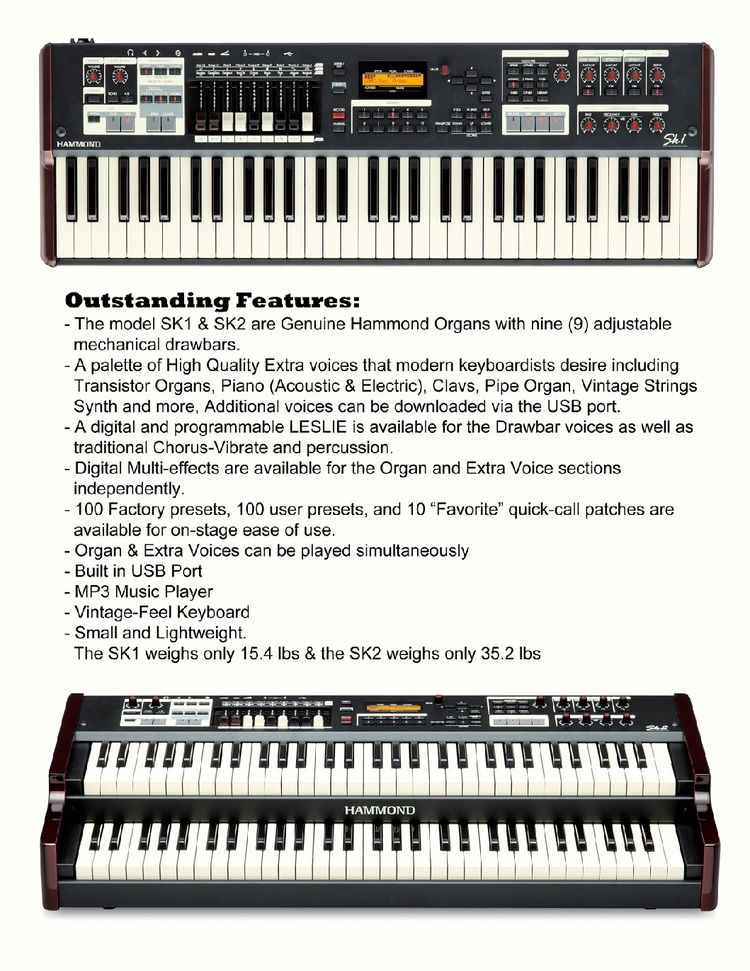

Tot slot de Amerikaanse folder
Even een stukje SK-2 muziek: http://vimeo.com/31373430
of een lekkere blues: https://www.youtube.com/watch?v=SpXFQQL8d0M&feature=related
Eind 2011 volgde de eerste SK-update, hetgeen het volgende inhield:
Updated Areas:
- A new parameter, Velocity Offset has been added to the [CONTROL] menu
– press [UP] 6 times.
- Blinking cursor changes to static cursor by pressing [ENTER].
- The [AMOUNT] knob is assigned to RATE when the LFO source is chosen on the Ring Modulator.
- Improved polyphonic response.
- CC#81 Receiving (Lower) Drawbar Registration Is Fixed.
- The processing for Voice library, load and delete are improved.
- The selection of Voice Groups by the [VALUE] knob is now limited to each category.
- The sharp keys velocity has been slightly lowered.
- The Extra Voice Version is now available in the display.
- On the Factory Preset Patches, Vibrato & Chorus for Pedal has been turned off.
- All custom ToneWheel models now speak at the same volume level.
- In the "A.Piano" Voices, "3rd Harmonic GP" and "St. GP OldTime Pcd" have been added.
- In the "E.Piano" Voices, "EPiano Wur Mellow" has been added.
- In the "Keyboard" Voices, "Doob Real Love" has been added.
- In the "Wind" Voices, "Big Band Gliss Up Pcd", "Two Trumpets", "Unison Brass", "Syn Brs Afri" and "Syn Brs Rosa" have been added.
- In the "Other" Voices "Noise Zap" and "Jet" have been added.
- In the Library "Tr.Organ VxJ", and "VxJS (with sustain effect) have been added
- Incoming MIDI pitch bend (2 semitones) and modulation control
controls has are enabled when the MIDI IN mode is set at "EXVOICE"
GENUINE AND AUTHENTIC HAMMOND ORGAN
Authentic Chorus-Vibrato/Touch Response Percussion/Overdrive
12 HAMMOND MACRO PROFILES with 17 TWEAKABLE PARAMETERS
96 INDIVIDUALLY Adjustable, Voiceable Digital Tonewheels
Create YOUR Perfect "B-3" From Showroom New to Road Worn Vintage
DIGITAL LESLIE™
8 LESLIE MACRO PROFILES:
Type 122
Type 147
Type 31H (or "TallBoy"-the first Leslie Speaker released in 1941)
Type 722 (Mid 70's "Home Organ" Model)
Type 760 (Late 70's Solid State "Combo" Model)
Type 825 (1970's Solid State Single Rotor Model)
ROCK TYPE (Early 70's Model 925 High-Power "Combo" Model)
PR-40 (Non-Rotary Vintage Hammond Tone Cabinet)
17 TWEAKABLE LESLIE PARAMETERS
Create YOUR Perfect Leslie-Store it in any of 8 User Profiles
COMBINE THE HAMMOND ORGAN OF YOUR CHOICE WITH THE LESLIE OF YOUR CHOICE TO COMPLETE YOUR DREAM RIG!
1000's of Combinations Possible
32 RANKS OF AUTHENTIC PIPE ORGAN
Each Rank Adjustable for Custom Voicing
VOX AND FARFISA COMBO ORGANS
37 Hi-DEF Extravoices with 114 variations
Yamaha C-7 Acoustic Grand
Upright Acoustic Piano
Yamaha CP70 Electric Grand
Rhodes Suitcase Electric Piano
Rhodes Stage Electric Piano
Rhodes Bass
DX7 Piano Electric Piano
Wurlitzer Electric Piano
Harpsichord
Clavinet D6
Lowrey Holiday Organ ("Lucy")
Clavioline ("Don't Run")
Vintage Hammond Extravoice ("Blue Star")
Suzuki A-120 Accordion
Vox Jaguar Organ
Trumpet
Mute Trumpet
Trombone
Mute Trombone
Flute
Alto Sax
Tenor Sax
Baritone Sax
Glockenspiel
Vibraphone
Solina String
Hammond SX String
Synth String 1
Synth String 2
Synth Sweep Pad
Synth Square Lead
Sawtooth Lead
"Funny" (from vintage Japanese Organ)
Synth Harp.
EXPANDABLE LIBRARY WITH FREE VOICES FROM HAMMOND WEBSITE
100 USER (RAM) PRESETS/100 FACTORY (ROM) PRESETS
10 PROGRAMMABLE "RADIO BUTTON" FAVORITES FOR INSTANT RECALL
Mp3/.WAV PLAYER
DUAL INDEPENDENT DSP's FOR ORGAN AND EXTRAVOICES
Tot slot hier een flink aantal filmpjes:
https://www.youtube.com/watch?v=C-vy9QJmFMw&feature=related
https://www.youtube.com/watch?v=hsmrvZEc_uw&feature=related
https://www.youtube.com/watch?v=K5C0AeK9hCo&feature=related
interview met Jon Lord, organist van Deep Purple
https://www.youtube.com/watch?v=Q4AbLZZ0380&feature=related
https://www.youtube.com/watch?v=C-vy9QJmFMw
https://www.youtube.com/watch?v=-UXBQvgUe3Y
En hier de allernieuwste video:
https://www.youtube.com/watch?v=K5C0AeK9hCo&feature=BFa&list=ULhsmrvZEc_uw&lf=mfu_in_order
Hier een fraaie speel-cursus op oa. de SK-2
En tot slot nog een fijne "hands-on" DEMO:
http://vimeo.com/23580761

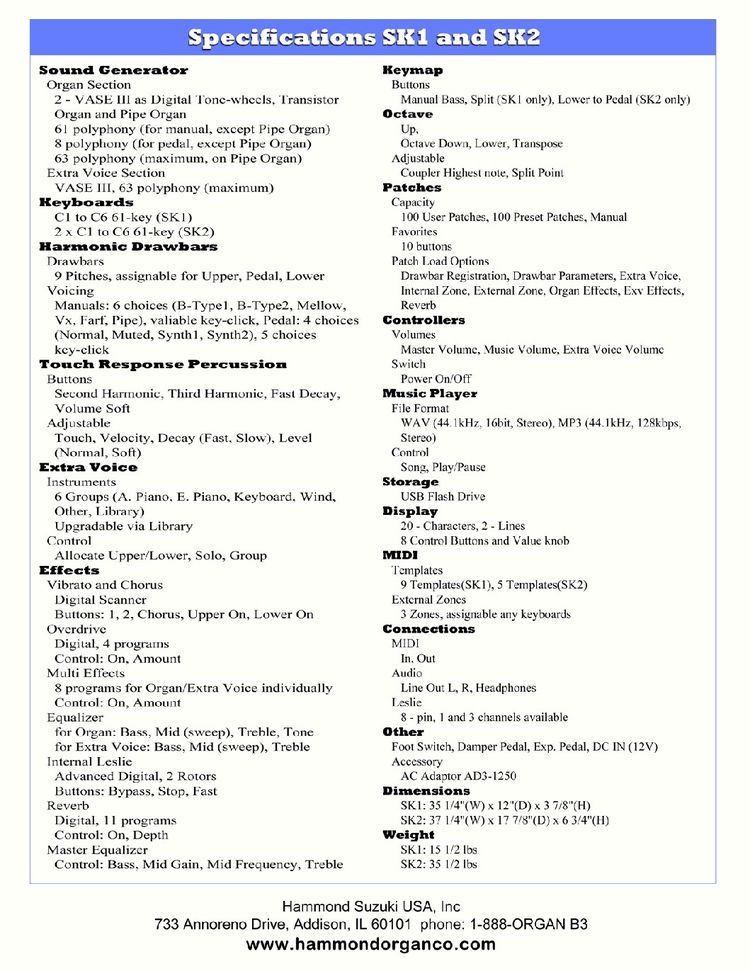

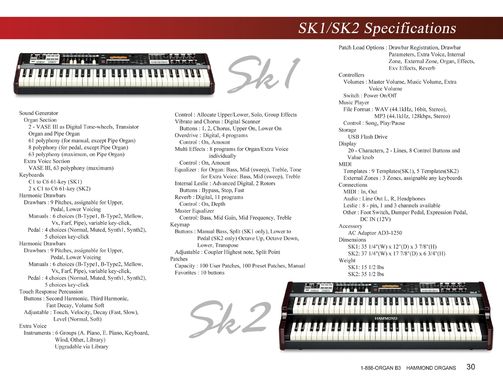

De Amerikaanse specs:
SK2
For many years, HAMMOND has been asked to make a truly portable double 61 note instrument that didn’t share the gross weight of a refrigerator. The SK2 can do it all. HAMMOND Drawbar voices up top, Grand Piano on the bottom-or vice versa. Manual Bass and Organ comp on the bottom, Horn section up top for accents. And yes, you can play the SK2 as a double manual HAMMOND Organ in the traditional fashion, the Pipe Organ voices too. Add one of our optional pedalboards and you’ll have the pro rig you’ve always dreamed of, but didn’t have the roadies or van to realize.
SK Series Overview
The SK Series Stage Keyboards are the most revolutionary HAMMONDS yet, from the company that invented and perfected the Drawbar/Tonewheel concept in 1934. These ultralight instruments provide the essential keyboard sounds required to play ANY show in ANY style, including a genuine and vintage-perfect HAMMOND Organ in compact packages with all the features expected in a vintage B-3, plus our most advanced Digital Leslie yet.
In addition to the authentic HAMMOND Tonewheel voices, the SK’s Extravoice Division provides Hi-Def Acoustic Grand, Rhodes, Wurlitzer and FM Pianos. Clavinet, Harpsichord, Accordion, Wind, Brass, Synth and Tuned Percussion voices complete the spec. You may play any of the Extravoices “solo” or add them to the Organ voices.
The Organ Generator may be switched to provide authentic models of Vox Continental, Vox Jaguar and Farfisa Combo Organs, all of which can be registered in the original fashion. The fourth Organ mode calls 32 ranks of Genuine Classical (“Church”) Pipe Organ voices derived from our Flagship Model 935 Church Organ.
Like all modern Hammonds, the SK’s have deep editing capabilities, allowing voicing (volume/timbre/leakage/motor noise) for each of the 96 Digital Tonewheels, faithfully delivering any Hammond Organ’s individual personality, with the ability to save these profiles for instant recall. 12 Factory Digital Tonewheel profiles ranging from “showroom clean” to “road worn” are available for instant personalization. Every facet of the Hammond’s sound like Chorus/Vibrato, Percussion, Key Click and Overdrive are widely adjustable with all settings saved with every preset. The Pipe Organ voices are also scaling/voicing capable.
Their Fatar semi-weighted keyboards are designed to feel like a vintage B-3, yet remain comfortable for any pianist, with variable touch “depth”. An expandable Voice Library is available free from the Hammond Website.
Any of the SK Series may be used as a MIDI Controller, with the ability to address 3 external zones. An Mp3/WAV music player is onboard to play backing tracks, break music, educational aids or any other tunes combined with the SK’s stereo output. You may also direct connect a physical Leslie Speaker via the 8 pin dedicated Leslie Jack.
GENUINE AND AUTHENTIC HAMMOND ORGAN
Authentic Chorus-Vibrato/Touch Response Percussion/Overdrive
12 HAMMOND MACRO PROFILES with 17 TWEAKABLE PARAMETERS
96 INDIVIDUALLY Adjustable, Voiceable Digital Tonewheels
Create YOUR Perfect "B-3" From Showroom New to Road Worn Vintage
DIGITAL LESLIE™
8 LESLIE MACRO PROFILES:
Type 122
Type 147
Type 31H (or "TallBoy"-the first Leslie Speaker released in 1941)
Type 722 (Mid 70's "Home Organ" Model)
Type 760 (Late 70's Solid State "Combo" Model)
Type 825 (1970's Solid State Single Rotor Model)
ROCK TYPE (Early 70's Model 925 High-Power "Combo" Model)
PR-40 (Non-Rotary Vintage Hammond Tone Cabinet)
17 TWEAKABLE LESLIE PARAMETERS
Create YOUR Perfect Leslie-Store it in any of 8 User Profiles
COMBINE THE HAMMOND ORGAN OF YOUR CHOICE WITH THE LESLIE OF YOUR CHOICE TO COMPLETE YOUR DREAM RIG!
1000's of Combinations Possible
32 RANKS OF AUTHENTIC PIPE ORGAN
Each Rank Adjustable for Custom Voicing
VOX AND FARFISA COMBO ORGANS
37 Hi-DEF Extravoices with 114 variations
Yamaha C-7 Acoustic Grand
Upright Acoustic Piano
Yamaha CP70 Electric Grand
Rhodes Suitcase Electric Piano
Rhodes Stage Electric Piano
Rhodes Bass
DX7 Piano Electric Piano
Wurlitzer Electric Piano
Harpsichord
Clavinet D6
Lowrey Holiday Organ ("Lucy")
Clavioline ("Don't Run")
Vintage Hammond Extravoice ("Blue Star")
Suzuki A-120 Accordion
Vox Jaguar Organ
Trumpet
Mute Trumpet
Trombone
Mute Trombone
Flute
Alto Sax
Tenor Sax
Baritone Sax
Glockenspiel
Vibraphone
Solina String
Hammond SX String
Synth String 1
Synth String 2
Synth Sweep Pad
Synth Square Lead
Sawtooth Lead
"Funny" (from vintage Japanese Organ)
Synth Harp.
EXPANDABLE LIBRARY WITH FREE VOICES FROM HAMMOND WEBSITE
100 USER (RAM) PRESETS/100 FACTORY (ROM) PRESETS
10 PROGRAMMABLE "RADIO BUTTON" FAVORITES FOR INSTANT RECALL
Mp3/.WAV PLAYER
DUAL INDEPENDENT DSP's FOR ORGAN AND EXTRAVOICES

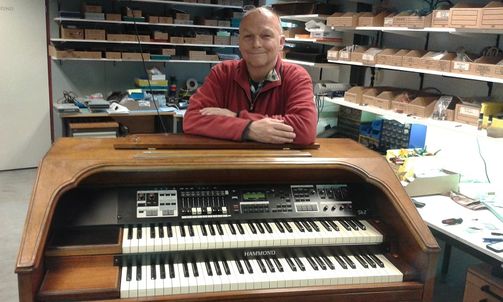

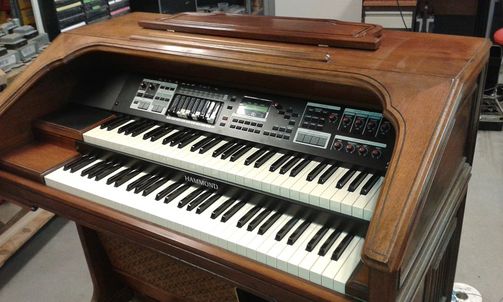

In 2014/2015 bouwde onze Sjaak van Oosterhout een complete SK-2 in de kast van een Hammond Collonade en werd "Skollonade" gedoopt waarvan hier het fraaie eindreseltaat:
Zowel electronisch als meubeltechnisch weer een sterk staaltje van Sjaak!
