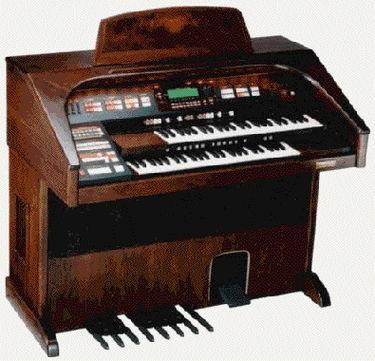

De Hammond XT-172 / XT-173
De Hammond XT 172 werd in Amerika Aurora Classic genoemd naar zijn memorabele voorloper. In Europa heette hij XT 173 Aurora Grande. Het was net als de voorloper een orgel met veel mogelijkheden, maar in een meubel van bescheiden omvang, zonder dat dit ten koste ging van een fraaie "theatrale uitstraling"
Specificaties:

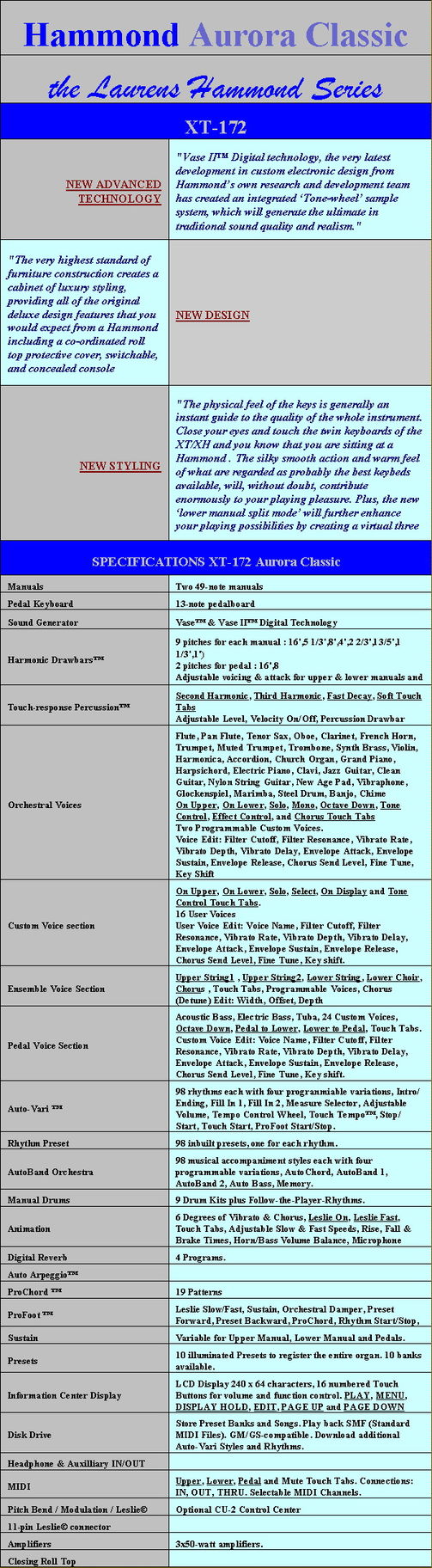

SPECIFICATIONS XT-172 Aurora Classic/XT 173 Aurora Grande
Manuals Two 49-note manuals
Pedal Keyboard 13 note pedalboard
Sound Generator Vase™ & Vase II™ Digital Technology (gesampelde toonwielen)
Harmonic Drawbars™ 9 pitches for each manual : 16',5 1/3',8',4',2 2/3',l 3/5',l 1/3',1')
2 pitches for pedal: 16', 8'
Adjustable voicing & attack for upper & lower manuals and pedals
Adjustable foldback for upper & lower manuals.
Touch-response Percussion™ Second Harmonic, Third Harmonic, Fast Decay, Soft
Touch Tabs: Adjustable Level, Velocity On/Off, Percussion Drawbar Cancel On/Off and Drawbar Level w/Percussion On/Off.
Orchestral Voices Flute, Pan Flute, Tenor Sax, Oboe, Clarinet, French Horn, Trumpet, Muted Trumpet, Trombone, Synth Brass, Violin, Harmonica, Accordion, Church Organ, Grand Piano, Harpsichord, Electric Piano, Clavi, Jazz Guitar, Clean Guitar, Nylon String Guitar, New Age Pad, Vibraphone, Glockenspiel, Marimba, Steel Drum, Banjo, Chime
On Upper, On Lower, Solo, Mono, Octave Down, Tone Control, Effect Control and Chorus Touch Tabs
Two Programmable Custom Voices.
Voice Edit: Filter Cutoff, Filter Resonance, Vibrato Rate, Vibrato Depth, Vibrato Delay, Envelope Attack, Envelope Sustain, Envelope Release, Chorus Send Level, Fine Tune, Key Shift
Custom Voice section On Upper, On Lower, Solo, Select, On Display and Tone Control Touch Tabs.
16 User Voices
User Voice Edit: Voice Name, Filter Cutoff, Filter Resonance, Vibrato Rate, Vibrato Depth, Vibrato Delay, Envelope Attack, Envelope Sustain, Envelope Release, Chorus Send Level, Fine Tune, Key shift.
Ensemble Voice Section Upper String 1, Upper String 2, Lower String, Lower Choir, Chorus , Touch Tabs, Programmable Voices, Chorus (Detune)
Edit: Width, Offset, Depth
Pedal Voice Section Acoustic Bass, Electric Bass, Tuba, 24 Custom Voices, Octave Down, Pedal to Lower, Lower to Pedal, Touch Tabs.
Custom Voice Edit: Voice Name, Filter Cutoff, Filter Resonance, Vibrato Rate, Vibrato Depth, Vibrato Delay, Envelope Attack, Envelope Sustain, Envelope Release, Chorus Send Level, Fine Tune, Key shift.
Auto-Vari ™ 98 rhythms each with four progranmiable variations, Intro/Ending, Fill In 1, Fill In 2, Measure Selector, Adjustable Volume, Tempo Control Wheel, Touch Tempo™, Stop/Start, Touch Start, ProFoot Start/Stop.
Rhythm Preset 98 inbuilt presets, one for each rhythm.
AutoBand Orchestra 98 musical accompaniment styles each with four programmable variations, Auto Chord, Auto Band 1, Auto Band 2, Auto Bass, Memory.
Manual Drums 9 Drum Kits plus Follow-the-Player-Rhythms.
Animation 6 Degrees of Vibrato & Chorus, Leslie On, Leslie Fast, Touch Tabs, Adjustable Slow & Fast Speeds, Rise, Fall & Brake Times, Horn/Bass Volume Balance, Microphone Settings.
Digital Reverb 4 Programs.
Auto Arpeggio™
ProChord ™ 19 Patterns
ProFoot ™ Leslie Slow/Fast, Sustain, Orchestral Damper, Preset Forward, Preset Backward, ProChord, Rhythm Start/Stop, Glide
Sustain Variable for Upper Manual, Lower Manual and Pedals.
Presets 10 illuminated Presets to register the entire organ. 10 banks available.

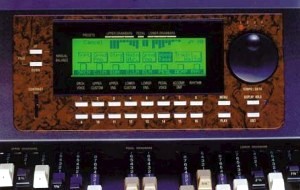

Information Center Display LCD Display 240 x 64 characters
16 numbered Touch Buttons for volume and function control.
PLAY, MENU, DISPLAY HOLD, EDIT, PAGE UP and PAGE DOWN Touch Buttons.
Disk Drive Store Preset Banks and Songs.
Play back SMF (Standard MIDI Files) GM/GS-compatible.
Download additional Auto-Vari Styles and Rhythms.
Headphone & Auxilliary IN/OUT Jacks
MIDI Upper, Lower, Pedal and Mute Touch Tabs.
Connections: IN, OUT, THRU. Selectable MIDI Channels.
Pitch Bend / Modulation / Leslie©
Optional CU-2 Control Center
11-pin Leslie© connector
Amplifiers 3 x 50 watt amplifiers.
Closing Roll Top
Hier een uitgebreide demonstratie.
