Hammond MINI-B



De Mini-B is ook weer een verhaal apart: je moet dit zien als een soort "Package deal".



In principe is het een "kant en klaar" orgel, welke verkocht wordt inclusief een speciaal voor dit orgel ontworpen Leslie, nl. de 971 SE. Dit is een 971 in een zeer strak design.

Tegen meerprijs kunnen er vanzelfsprekend ook andere Leslie's meegeleverd worden.

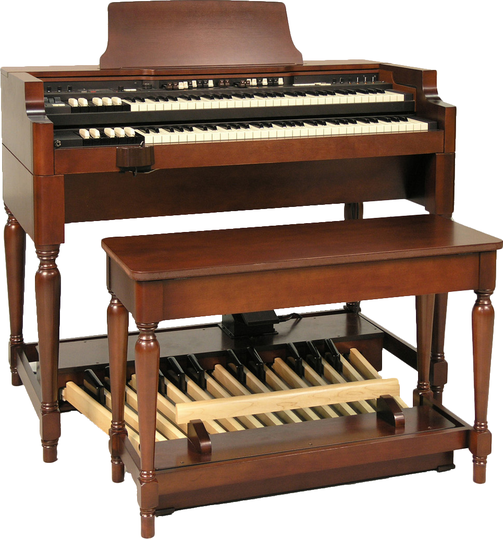

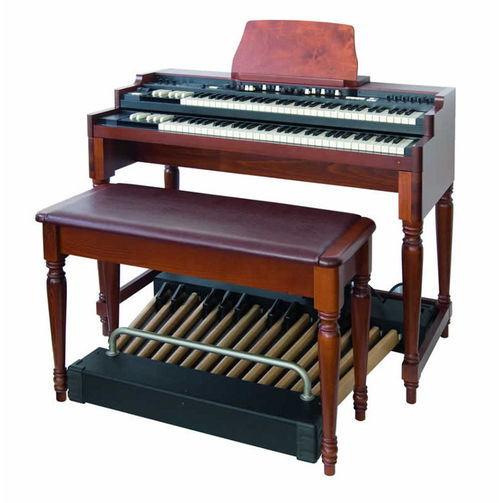

De Package deal houdt in: een dikke Mini-B, een demontabele bank in stijl met berging.
Een 4,5 meter lange 11-pins Leslie-kabel
Een TrippLite (TM) Surge protector, een beveiliging tegen blikseminslag, zoals tegenwoordig ook vaak in stekkerblokken en computers optioneel wordt bijgeleverd.
De Leslie 971SE met 300 Watt pure buizenklank.
3 jaar garantie op het orgel en 1 jaar op de Leslie.

Het idee erachter is dat de meesten onder ons eigenlijk maar één ding willen: of een lekkere ouwe B-3 of een dikke New-B-3, maar dan wat compacter en betaalbaarder,
maar met dezelfde dosis aan muziekaal plezier!
Voor díegenen is de Mini-B op de markt gezet en deze installatie mag beslist gezien en gehoord worden!

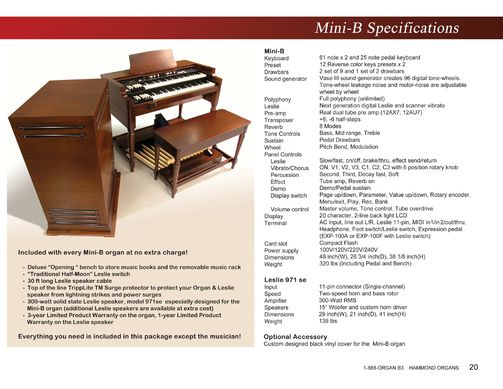

Eerst even de specs:
Keyboard: 61 note x 2 and 25 note pedal keyboard
Preset: 12 Reverse color keys presets x 2
Drawbars: 2 set of 9 and 1 set of 2 drawbars
Sound generator: Vase III sound generator creates 96 digital tone-wheels
Tone-wheel leakage noise and motor-noise are adjustable wheel by wheel
Polyphony: Full polyphony (unlimited)
Leslie: Next generation digital Leslie and scanner vibrato
Pre-amp
Real dual tube amp: 12AX7, 12AU7
Transposer: +6, -6 half-steps
Reverb: 8 Modes
Tone Controls: Bass, Mid range, Treble
Sustain: Pedal Drawbars
Wheel: Pitch Bend, Modulation

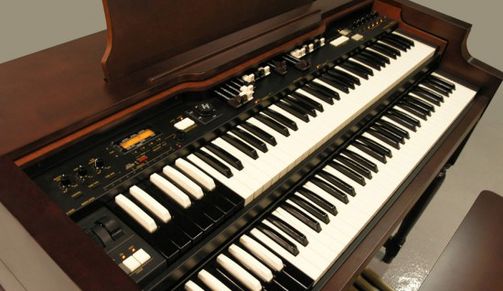

Panel Controls: Leslie Slow/Fast, On/Off, Break/Thru, Effect send/return
Vibrato/Chorus ON, V1, V2, V3, C1, C2, C3 with 6 position rotary knob
Percussion Second, Third, Decay Fast, Soft
Effect Tube amp, Reverb on
Demo/Pedal sustain
Display switch:
Page up/down, Parameter, Value up/down, Rotary encoder
Menu/exit, Play, Rec, Bank
Volume control: Master volume, Tone control, Tube overdrive
Display: 20 character, 2-line back light LCD
Terminal: AC input, Line Out L/R, Leslie 11-pin, MIDI In 1 / In 2 / Out / Thru,
Headphone, Foot switch/Leslie switch, Expression pedal
(EXP-100A or EXP-100F with Leslie switch)
Card slot: Compact Flash
Power supply: 100V/120V/220V/240V
Dimensions: 48"(W) x 26 3/4"(D) x 38 1/8"(H)
Weight: 320 lbs (Including Pedal and Bench)

Leslie 971 SE
Input: 11-pin connector (Single-channel)
Speed: Two-speed horn and bass rotor
Amplifier: 300-Watt RMS
Speakers: 15" Woofer and custom horn driver
Dimensions: 29"(W) x 21" (D) x 41"(H)
Weight: 139 lbs

Dan even wat fraaie Engelse beschrijvingen:

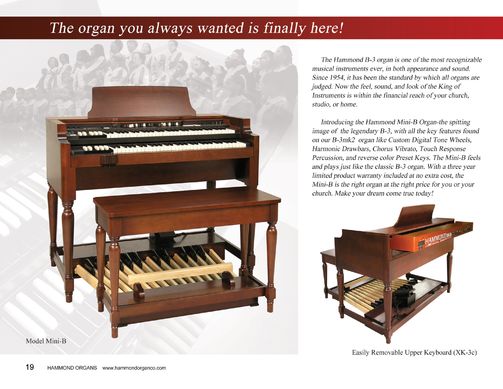

Introducing the Hammond Mini-B organ, the spitting image of the legendary B-3, with all the key features found on our B-3 MK 2 organ like:
Custom Digital Tonewheels, Harmonic Drawbars, Chorus Vibrato,
Touch Response Percussion and reverse color Preset Keys.
The Mini-B feels and plays just like the classic B-3 organ.

The look and feel of the mighty mighty B-3 is now available for every Church, Chapel, School, Stage and Home.
The Hammond "Mini-B" carries on the legend, offering the sound and response that has made music a grander place. No matter what style of music you play, no matter the denomination of your church, the Mini-B plays like tradition, sounds like tradition and now looks like tradition.
The Mini-B is bundled with a special edition 100 watt Leslie model 971SE, built especially for the Mini-B which puts the power that you have come to expect at your fingertips. If you have to "go mobile" no worries!
The "heart" of the Mini-B, the single-manual K3c, slides directly out of the back with no tools in 5 minutes and slides right back in when you come "off the road"
Unlike the traditional XK-system, the Mini-B is shipped completely assembled from the factory with 25 note pedalboard and matching bench.
At a price that makes it affordable for everyone, you too can have a genuine brand new Hammond and Leslie with a comprehensive factory warranty and all the confidence that only a brand new organ can bring.
THE NEW Mini-B IS A RUNAWAY HIT!
CHURCHES ACROSS THE LAND LOVE THE VINTAGE LOOK AND SOUND!

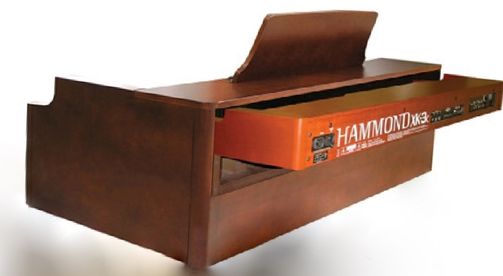

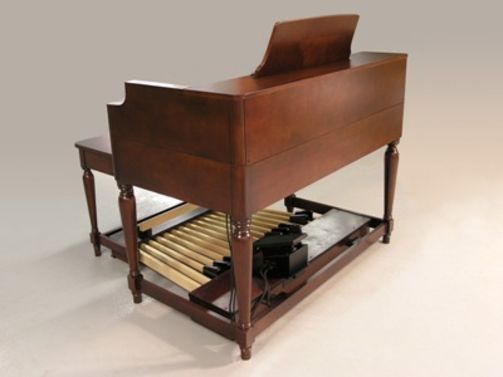

Hierboven: Dus zó maken ze kleine Hammondjes???

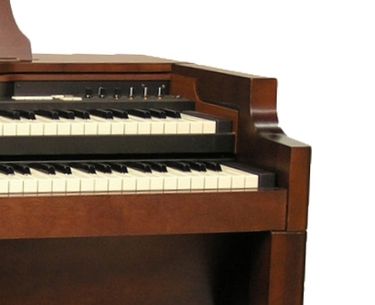

Nee hoor, maar als je alleen even een éénklaviers-hammond nodig hebt, kun je er aan de achterkant zó een XK3-C uitttrekken! Hieronder zie je duidelijk hoe dit werkt: rechts aan de binnenkant van het zijpaneel zie je nog duidelijk de contouren van de XK3-C





.

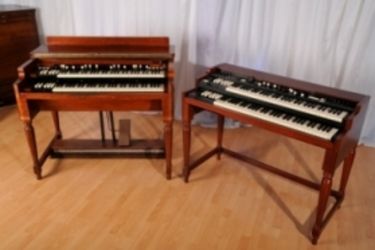

EN TOT SLOT NOG EVEN DE MINI-B,
RECHTS NAAST DE OORSPRONKELIJKE B-3


Moses Tyson, Jr. Official Hammond Organ geeft een fantastische uitleg:

 https://www.youtube.com/watch?v=3HcmauRVOLU
