De Leslie Encyclopedie

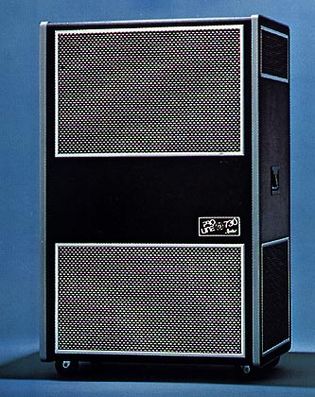

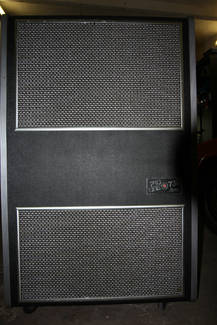

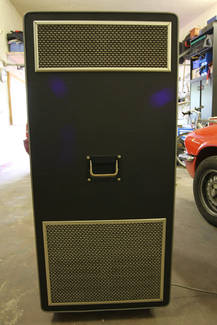

LESLIE MODEL 730



De Leslie 730 is technisch gelijk aan de houten 720 maar is in "PRO-LINE" uitvoering. (portable versie)



  • Height 45 inches.
  • Width 29 inches.
  • Depth 21 inches.

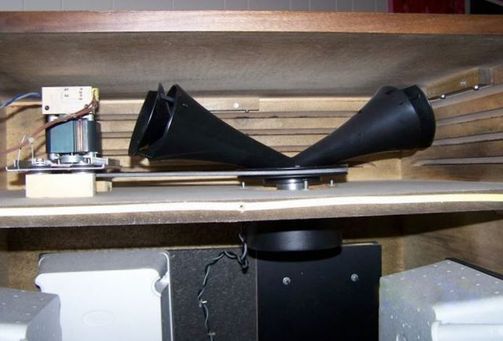

  • Has 2 rotors and 5 speakers.
  • Accepts 2 channels from the source.
  • The amp provides 90 Watts of RMS power.
  • An 11 pin connector:
    1. Flute/Tibia audio
    2. Main/Stationary audio
    3. No Connection
    4. Audio Ground
    5. Control Supply Common
    6. Control Circuit Common
    7. Fast Motor Control
    8. Slow Motor Control
    9. No Connection
    10. Aux #1
    11. 29 VDC for control head
  • Leslie recommends it for use with 2-Channel organs.
  • Has a vinyl cabinet.
