Roland maakt zijn "eigen" MINI-B



Het is 2013 wanneer Roland een orgel uitbrengt dat gezien kan worden als een soort Mini B.

Grote man achter dit project is als immer Mr. Kakehashi, de man die nog steeds een grote liefde heeft voor het orgel, en dan het type instrument zoals wij Hammond liefhebbers dat de voorkeur geven. Na de ROLAND AR-serie komt dit bedrijf met een orgel op de markt, dat zijn weg zou moeten vinden naar de ware 'puristen" Zie dit instrument dus maar als een Roland "Mini-B"

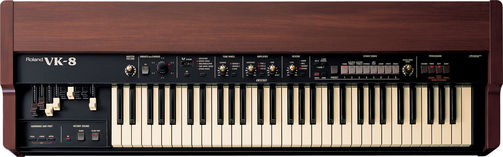

Qua design zijn de Hammond invloeden uiteraard onmiskenbaar. De techniek is bijna geheel afgeleid van de alweer een tijdje leverbare VK-8. Daarbij zijn Vibrato en Leslie effecten wel verbeterd.

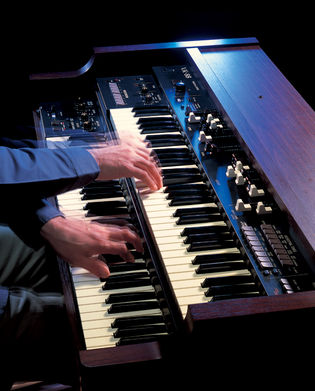

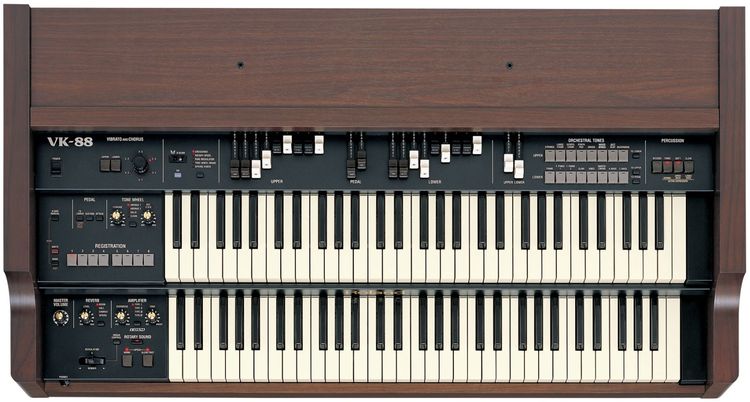

Net als Hammonds' MINI-B is het een modulair systeem met als basis de klavier-unit:

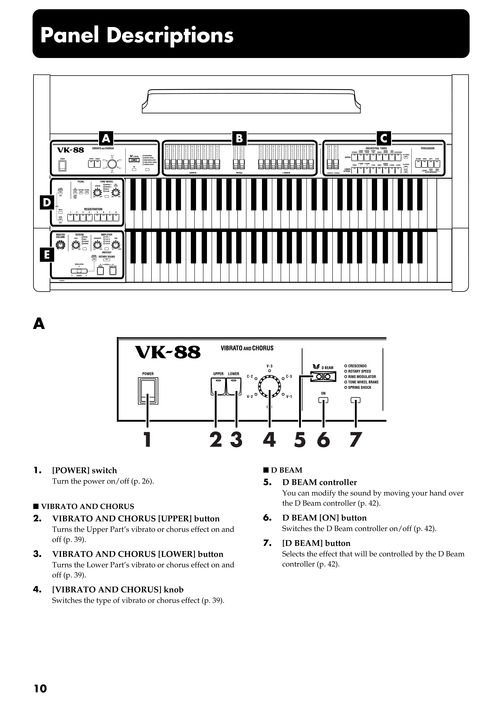

De indeling van het registerpaneel is als volgt:

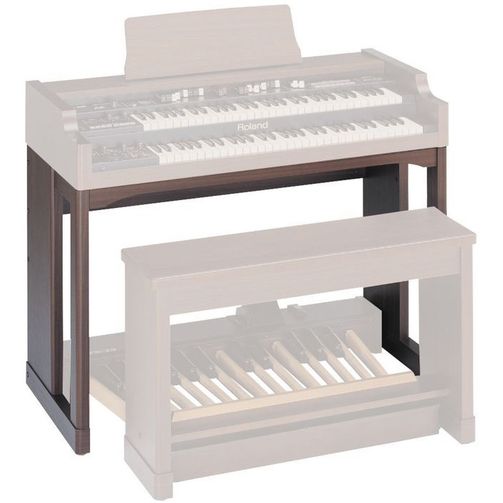

Dan het onderstel, genaamd KS-88:

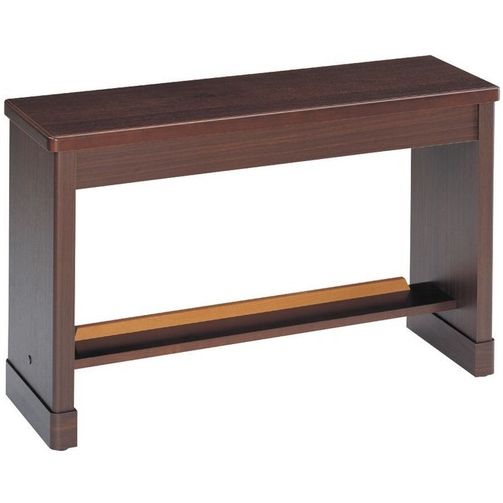

De bank, type BNC-88:

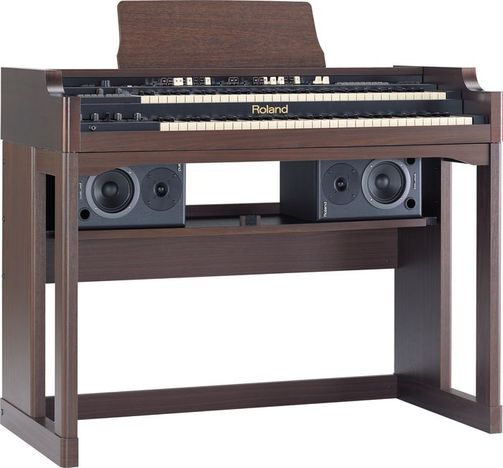

Hier is de installatie geplaatst op het onderstel. Let op de boekenplank onder de speeltafel,
waarop luidsprekers gelegd kunnen worden.

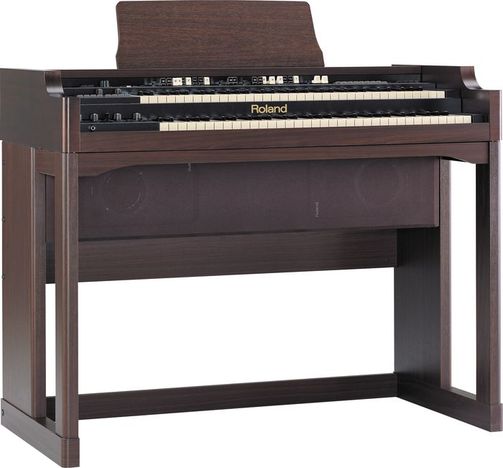

Hier met geplaatst luidsprekerdoek.

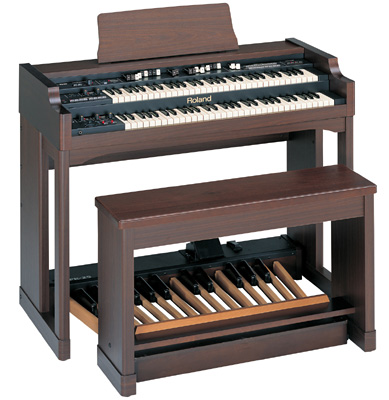

Tot slot wordt het PK-25 pedaal eronder geschoven.



Alles bij elkaar komt de prijs op zo'n $ 9799,-

Een geduchte concurrent voor Hammond's MINI-B zal dit model wel niet worden, want daarvoor mist de Roland toch wel een groot stuk aan "B-3"sounds, ondanks het feit dat ook van virtuele techniek gebruik gemaakt wordt.
Daarnaast reageert het geheel niet zo "direct" op toetsaanslagen: het is net of er een soort vertraging in het systeem zit.
Verder zijn er veel minder parameters aan boord, om een en ander aan de persoonlijke smaak van de organist aan te passen. Bovendien is er geen display, waar dat dan zichtbaar op zou zijn.
Zowel de Vibrato's als de Leslie simulatie kunnen lang niet op tegen Hammond's huidige digitale effecten.

Al met al presteren een aantal "Hammond-clonen" zoals bijv. Nord, Crumar Mojo, Diversi, Hamichord en Key-B deze ronde veel beter.

Nu de specs:

Keyboard
    Upper: 61 keys (Waterfall with velocity and after touch)
    Lower: 61 keys (Waterfall with velocity)


Sound Generator
    Organ: Virtual ToneWheel,
    Orchestral Tones: PCM
Part
    Organ: 3 parts (Upper, Lower, Pedal),
    Orchestral Tones: 3 parts (Upper, Lower, Pedal)
Maximum Polyphony
    Organ: Full Polyphony,
    Orchestral Tones: 128 Voices
Organ
Tone Wheel
    Tone Wheel (VINTAGE1, VINTAGE2, SOLID, CLEAN), Leakage Level, Key Click Level

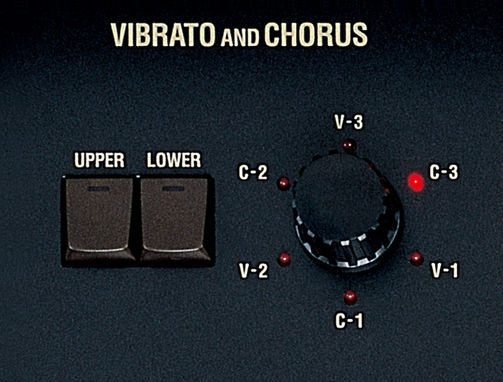

Vibrato and Chorus
    V-1, V-2, V-3, C-1, C-2, C-3

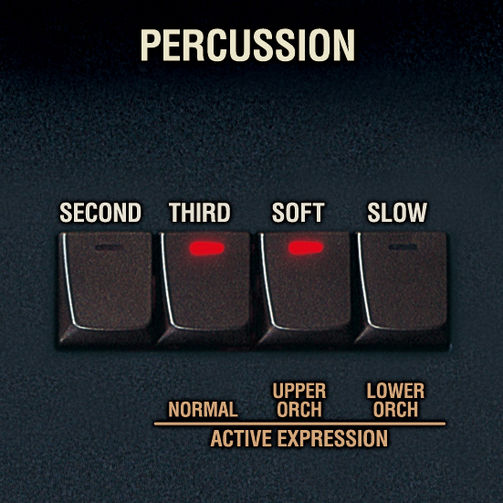

Percussion
    SECOND, THIRD, SOFT, SLOW


AMP simulator
    AMP Type (Type I, Type II, Type III, Type IV), Overdrive, Tone
Reverb
    Reverb type (Room, Hall, Church, Spring) Reverb Level
D BEAM
    CRESCENDO, ROTARY SPEED, RING MODULATOR, TONE WHEEL BRAKE, SPRING SHOCK




Orchestral Tones
Upper: STRINGS, LARGE and GOSPEL CHOIR, SYNTH PAD, BRASS, WOOD WIND, JAZZ SCAT, ACCORDION
Lower: PIANO, E.PIANO 1, E.PIANO 2, CLAVI, VIBES, HARPSICHORD, A.BASS, E.BASS
Pedal: PIANO, E.PIANO 1, E.PIANO 2, CLAVI, VIBES, HARPSICHORD, A.BASS, E.BASS
Effect
    Chorus, Reverb
Internal Memory
    Registration memory: 64 (User Memory)
Connectors
    INPUT Jacks (L/MONO, R) 1/4 inch phone type
    MIX OUTPUT Jacks (L, R) XLR 3-32 type
    MIX OUTPUT Jacks (L/MONO, R) 1/4 inch TRS phone type
    ORGAN OUTPUT Jacks (L/MONO, R) 1/4 inch TRS phone type
    ORCHESTRAL TONES OUTPUT Jacks (L/MONO, R) 1/4 inch TRS phone type
    PHONES Jack: Stereo 1/4 inch phone type
    EXPRESSION PEDAL Jack
    HOLD PEDAL Jack
    CONTROL PEDAL 1 Jack, CONTROL PEDAL 2 Jack
    MIDI Connectors (IN, PEDAL IN, OUT)
    PK IN Connector
    ROTARY TONE CABINET Connector 11 pin
    AC Inlet


Power
    AC 117 V, AC 230 V, AC 240 V
Power Consumption
    55 W
Finish
    Top Panel: Simulated Walnut, Side Panel: Natural Wood Walnut Finish
Accessories
    Owner's Manual, Edit Mode Quick Reference, Music Rest, Rear Cover, Screw Set, Cord Clamp, PK Cable, Power Cord
Options
Organ Stand: KS-88, Pedal Keyboard: PK-25/7, Organ Bench: BNC-88,
Keyboard Amplifier: KC Series, Expression Pedal: EV-7
Size and Weight
Width
    1,184 mm
    46-5/8 inches
Depth
    590 mm
    23-1/4 inches
Height
    1,130 mm
    44-1/2 inches
Weight
    62.0 kg
    136 lbs. 11 oz.


Hier is een JAZZY  video te zien.

En hier een "HAPPY-CLAPPY"versie


En tot slot Roland's omschrijving:


The VK-88 Combo Organ is the ultimate instrument for players who crave the most authentic organ sound and feel. This gorgeous double-manual instrument incorporates Roland's advanced "Virtual Tone Wheel" organ sound with COSM Amp and Rotary Speaker Modeling - plus waterfall keyboards that play just like a classic organ.
A D Beam with multi-colored LED gives players enhanced realtime control, while two additional harmonic bars and Active Expression let players blend in other instrument tones.

Flagship combo organ with two 61-note manuals and Virtual ToneWheel technology
Dual waterfall keyboards with quick-firing keys - great for playing glissandos
Includes Orchestral Tones like piano, strings, brass and outstanding choir sounds
9 harmonic bars per manual (upper/lower), two harmonic bars for pedal part, plus two harmonic bars for Orchestral Tones
4 types of COSM Amp Modeling including overdriven sounds
Rotary speaker modeling simulates a well-known rotary speaker
Active Expression lets players fade in an Orchestral Tone via expression pedal
D Beam controller with multi-colored LED and templates for easy realtime control
Onboard reverb, vibrato and chorus effects
Authentic solid wood cabinet

Authentic In Every Way
Even the most sophisticated organ aficionado will revel in the beautifully designed VK-88. Its gorgeous wooden cabinet captures the look of a classic, while the traditional panel layout - with nine harmonic bars per manual (upper/lower), two harmonic bars for the pedal part, and two additional harmonic bars for Orchestral Tones - gives players intuitive control of the organ sound. Dual waterfall keyboards with quick-firing keys make it possible to play using traditional organ techniques like glissandos.

Advanced Virtual ToneWheel Sound
The VK-88's organ sounds are based on the same advanced Virtual Tone Wheel sound engine used in the acclaimed VK-8 Combo Organ. Players can choose from four authentic tone wheel types - Vintage 1, Vintage 2, Solid and Clean - and then further adjust the sound using the harmonic bars. The VK-88 even lets players adjust the leakage level and click sound - just like the organs of yesteryear!

COSM Amp and Rotary Speaker Modeling
In addition to its ability to accurately model the sound of a vintage rotary speaker, the VK-88 sports four types of COSM amp models. Now you can get any organ tone imaginable - from the clean sound of a gospel organ to the gritty sound of a rock organ (courtesy of the newly developed COSM Amp Type IV, which features an incredible gain stage for down-right killer distortion)

Built for Performers

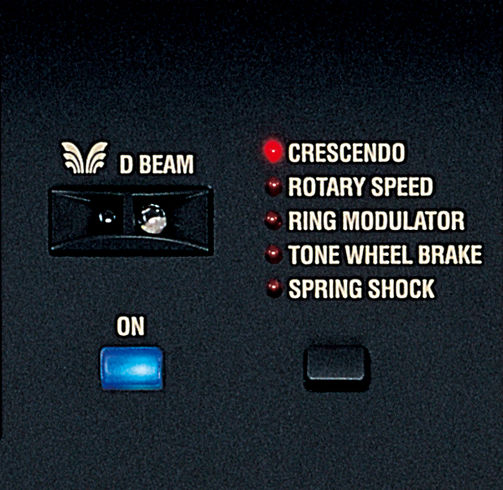

Take your performance to the next level with the light-sensing D Beam controller. Using an infrared beam of light with an LED that changes color depending on the proximity of your hand, you can control a variety of preset options like rotary speed (Slow/Fast)
And with Active Expression, players can slowly fade in one of the VK-88's Orchestral Tones using an optional EV-7 Expression Pedal. These additional tones offer new possibilities for organ performance, while 64 User registrations make for quick and easy recall.

Super Size Your Combo!
By adding the optional PK-25, players gain a 25-note pedalboard ideal for playing bass. Designed to match the distinctive look of the VK-88, the PK-25 also includes a detachable expression pedal and two footswitches. Pair up the VK-88 with Roland's KC-1000 stereo mixing amplifier and you will get 310 watts of powerful sound with unique RSS® ambient effects, split-frequency compression and ultra-realistic tone cabinet reverberation.
