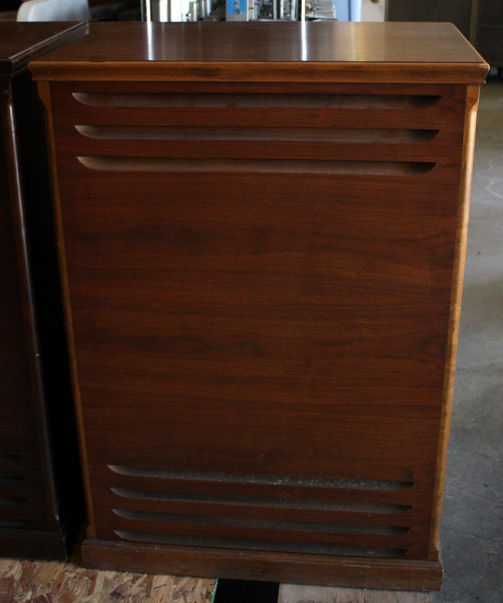

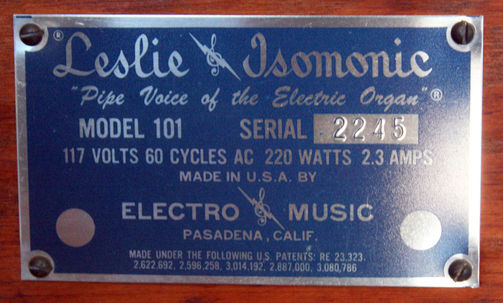

LESLIE MODEL 101



Zoals gezegd, was de 101 niéts meer dan de opvolger van model 100 GK, de Gulbransen-Leslie.  Het verschil beperkt zich hooguit tot een paar kleine versterker-modificaties.

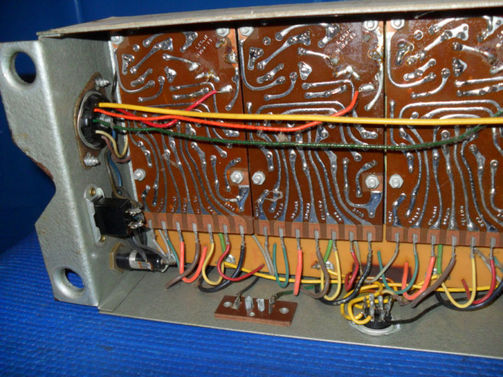

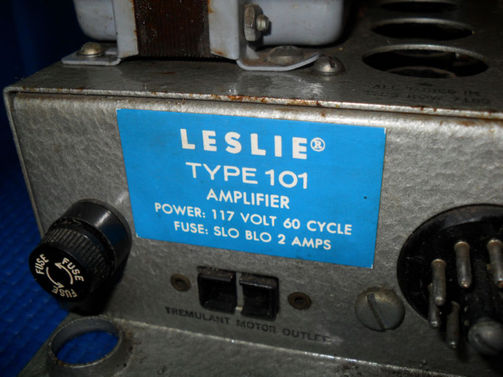

Amplifier Type 4 Channel Vacuum Tube
Output Power 65 Watts total

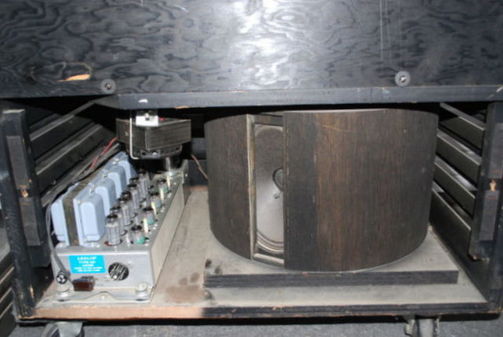

Drum Rotosonic
Horn None
Speeds 1 Speed (Stop/Tremolo)
Interface Custom

  • Height 41 inches.
  • Width 29 inches.
  • Depth 20.5 inches.

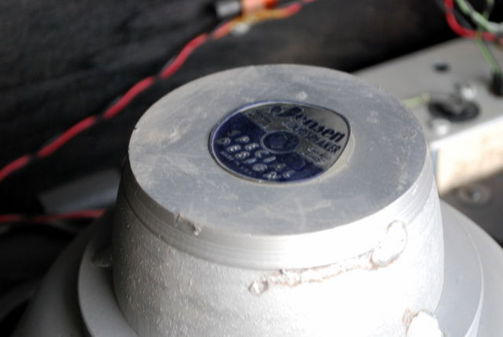

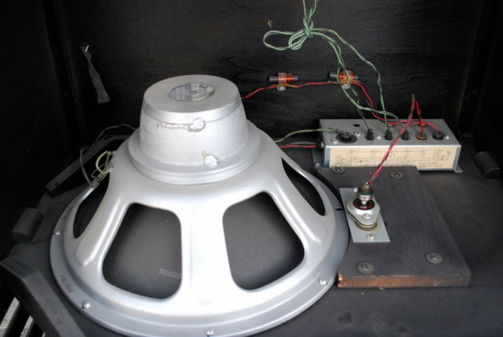

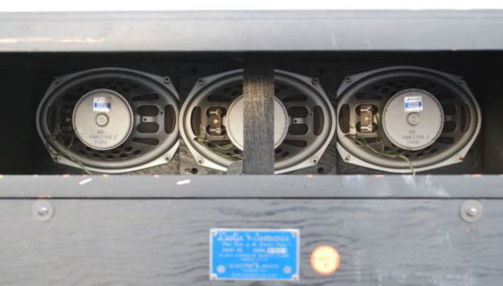

  • Has 1 rotor and 7 speakers.
  • Accepts 4 channels from the source.
  • The amp provides 65 Watts of RMS power.
  • A 9 pin connector:
    1. Audio Ground
    2. Pedal/Bass audio
    3. Flute/Tibia audio
    4. Main/Stationary audio
    5. Aux #1
    6. Tibia Tremolo DC control
    7. Mains Tremolo DC Control
    8. AC Power Hot
    9. AC Power Return

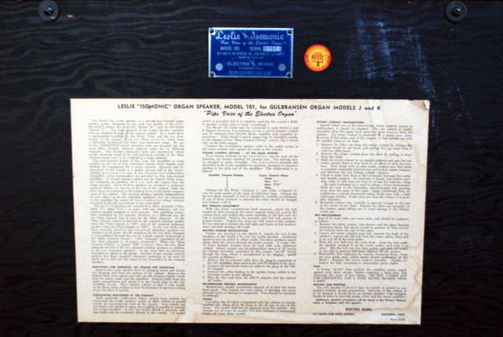

  • Leslie recommends it for use with Gulbransen J, K and Premiere.

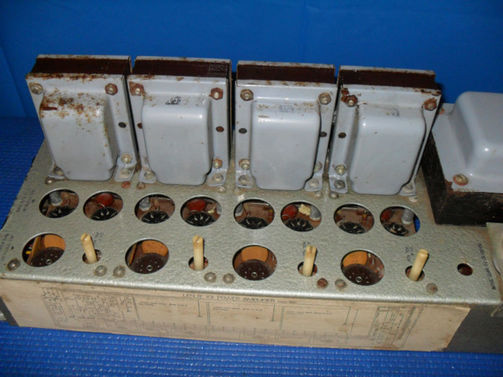

  • Has a warm-toned vacuum tube amp.
  • Has a wood cabinet.
