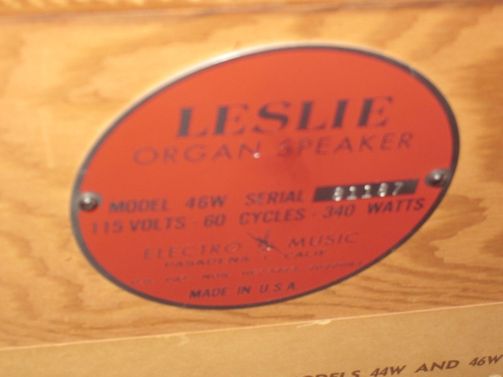

LESLIE MODEL 46 W



Dit model was, (let op de "W") ontworpen voor Wurlitzer orgels, maar met de juiste kit kon deze box op alle mono orgels aangesloten worden.

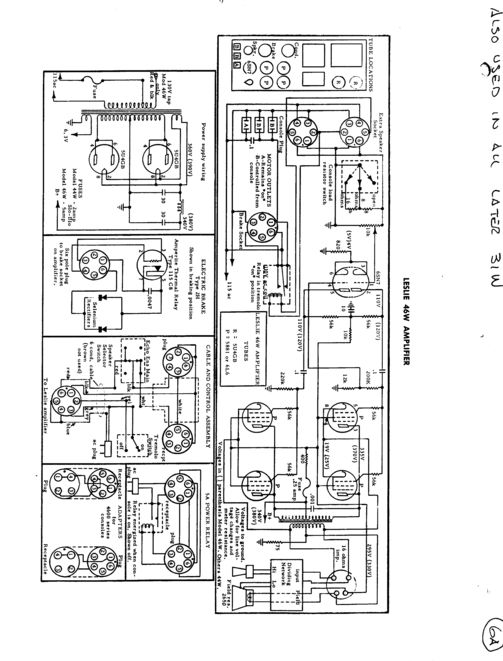

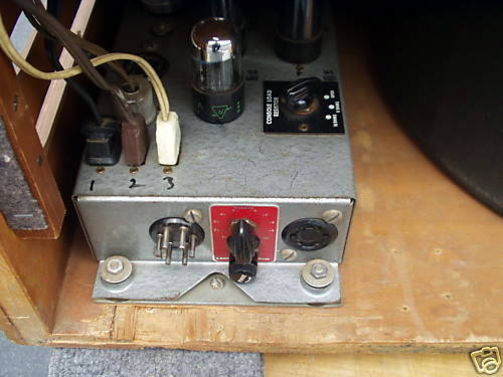

Amplifier Type 1 Channel Vacuum Tube
Output Power 20 Watts

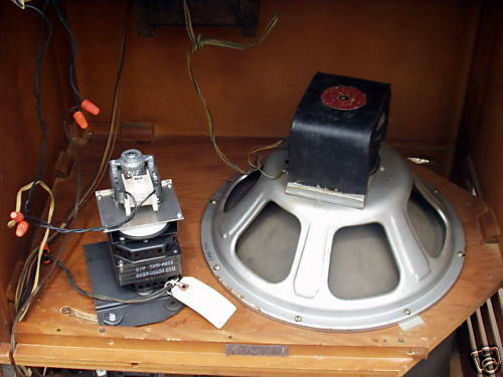

Drum 1 - 15" Speaker

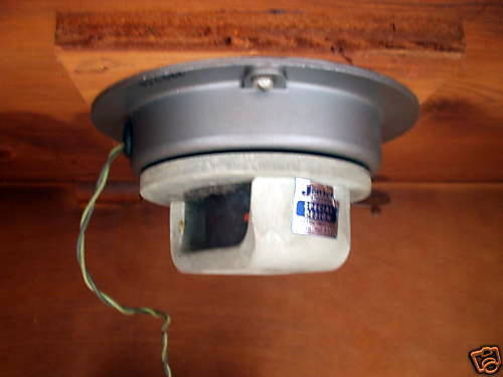

Horn 1 - Compression Driver

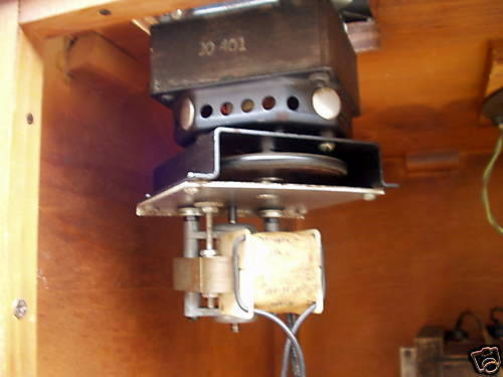

Speeds 1 Speed (Stop/Tremolo)
Interface 6 Pin Unbalanced

  • Height 41 inches.
  • Width 28 inches.
  • Depth 21 inches.

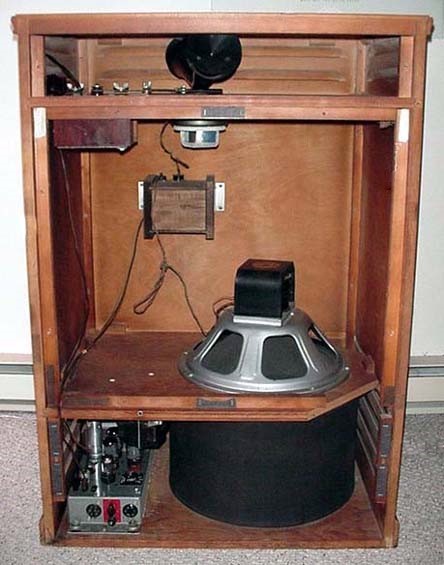

  • Has 2 rotors and 2 speakers.
  • Accepts 1 channel from the source.
  • The amp provides 30 Watts of RMS power.

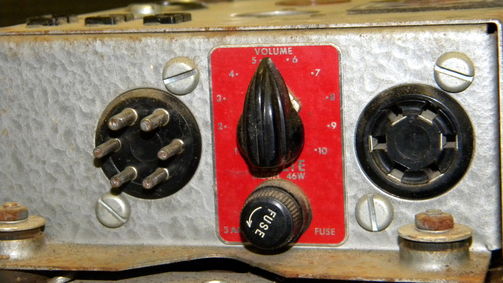

  • A 6 pin connector:
    1. Audio Ground
    2. Tremolo Control AC
    3. AC Power Return
    4. AC Power Hot
    5. Tremolo Control AC
    6. Audio Signal Hot
  • Leslie recommends it for use with Most electronic Organs.

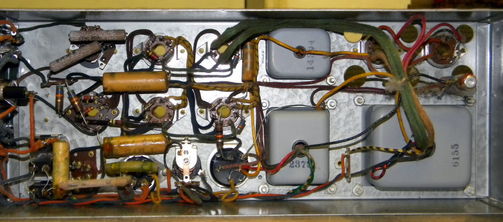

  • Has a warm-toned vacuum tube amp.

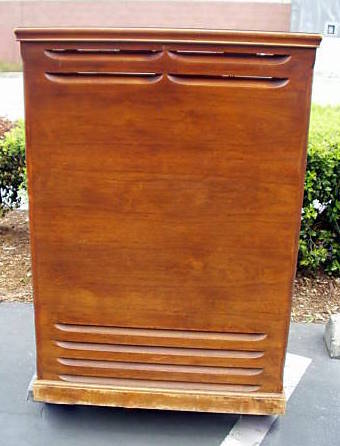

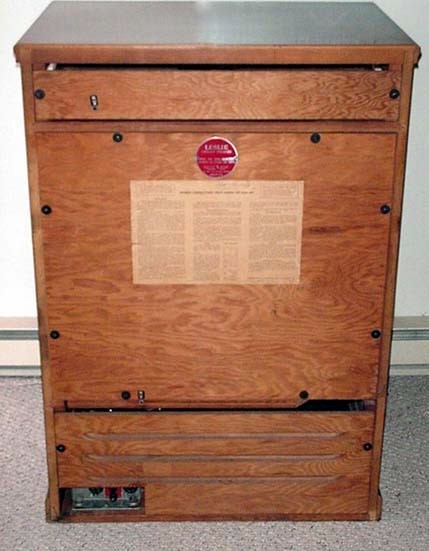

  • Has a wood cabinet.



















 Oké, 't is een raar filmpje, maar bij gebrek aan beter:
https://www.youtube.com/watch?v=fVZAUW66h5Q
